LED Scroller Matrix keyboard
Original price was: ₹250.00.₹142.00Current price is: ₹142.00. (Excl. 18% GST)
Price (Excl. GST): ₹142.00
Price (Incl. GST): ₹167.56
- Switch Type: Momentary
- Pin Spacing (mm): 2.54
- Module Dimensions (L x W x H): 57 x 33 x 6
- Weight: 10gm
- 4×4 Matrix Keyboard Module with 16 buttons
3 in stock
Out of stock
6 in stock
64 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

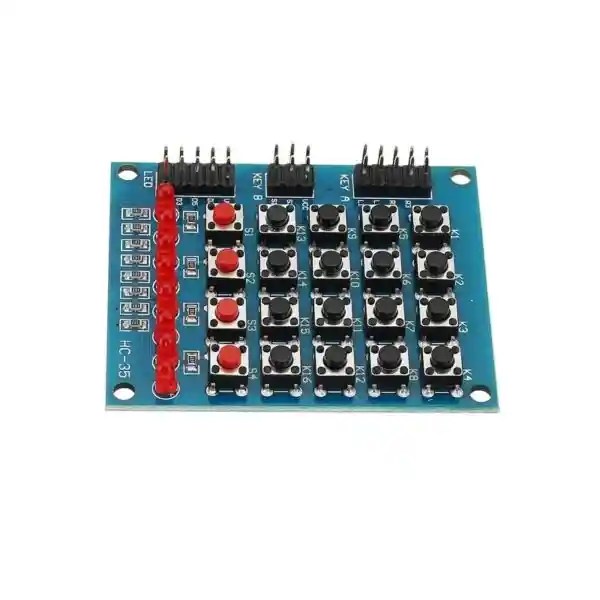

The LED Scroller Matrix keyboard is a versatile input device commonly used in various electronic projects. It features a total of 16 keys, allowing for a range of input values, making it suitable for applications like security systems, home automation, and robotics. This non-encoded matrix keypad consists of 16 keys arranged in parallel, facilitating easy access for users.
The keys are organized into rows and columns, with pins R1-R4 controlling the rows and L1-L4 controlling the columns. This arrangement enables efficient scanning of key presses. The keypad utilizes microswitch pushbuttons, providing a tactile response for enhanced user interaction.
Additionally, the module includes four 3mm (M3) mounting holes for secure installation in various setups. Each PCB clearly displays pin designations for easy reference, helping users connect the keypad with confidence. The design uses four pins for the ‘x’ coordinate and four for the ‘y’ coordinate, ensuring accurate input detection. Moreover, the module comes with pre-soldered pin headers, simplifying integration into projects.
LED Scroller Matrix keyboard Features:
- 4×4 Matrix Keyboard Module with 16 buttons
- Small in size and hence Save space
- More convenient to use
- Expanded development application modules for single chip
Package Includes:

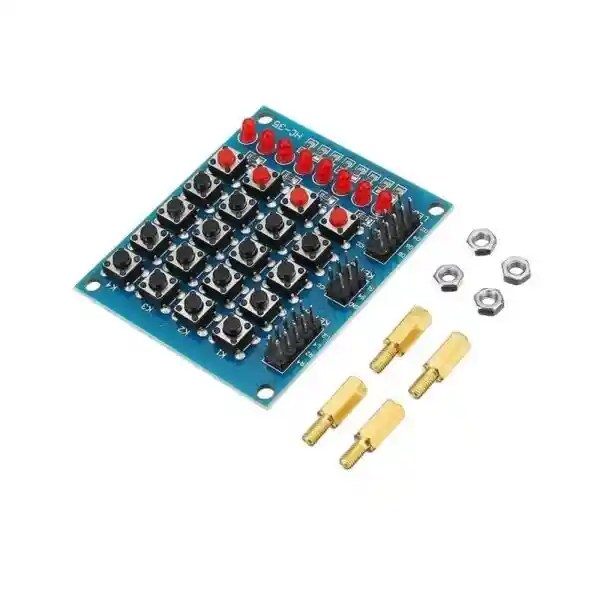

- 1 x 4×4 Push Button Switch 16 Keys 8LEDs Matrix Independent Keyboard Module
