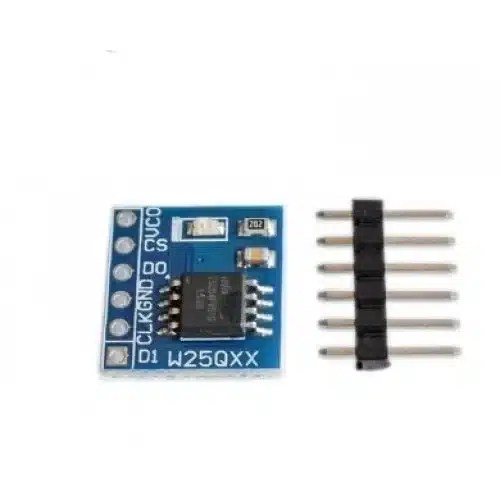

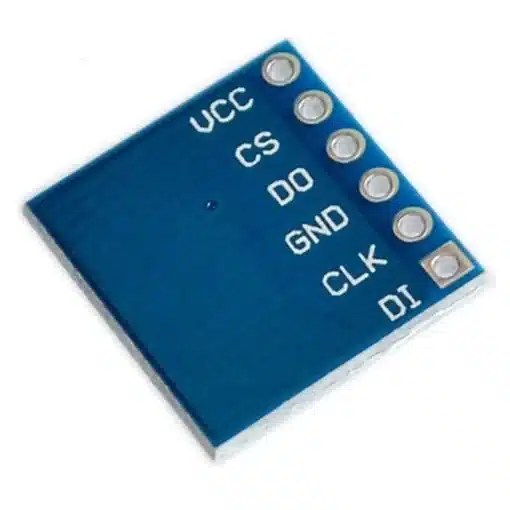

W25Q64 64Mbit 8 MByte FLASH Data Flash module SPI interface BV/FV
Original price was: ₹179.00.₹65.00Current price is: ₹65.00. (Excl. 18% GST)
Price (Excl. GST): ₹65.00
Price (Incl. GST): ₹76.70
- IC: 25Q64FVSIG-1935
- Capacity: 64M-bit / 8M-byte
- Clock frequency: <104MHz
- Working voltage: 2.7V ~ 3.6V
- Current: 4mA
- Dimensions (LxWxH): 15.5 x 14.5 x 3.7 mm
| Weight | 2 g |
|---|---|
| Dimensions | 15.5 × 14.5 × 3.7 mm |
21 in stock
Out of stock
6 in stock
7 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The W25Q64 64Mbit 8 MByte FLASH module with SPI Interface BV/FV addresses the challenge of limited data storage space in systems with constrained capacities. This module stands out for its efficiency and superior performance compared to traditional Serial Flash devices, thanks to its high flexibility and advanced features.
Ideal for temporary data storage, the W25Q64 module (part number 25Q64FWSIG-1935) offers a large memory capacity with low power consumption. It can be used in various applications, such as devices that record GPS data or accelerometer information in vehicles.
Functioning like a computer’s hard disk, this solid-state memory is non-volatile and lacks moving parts, reducing the risk of damage. One of its main advantages is that it comes pre-soldered onto a board with DIP pins, simplifying integration without the need for additional soldering.
The memory is organized into 32,768 programmable pages of 256 bytes each, allowing for up to 256 bytes to be programmed at a time. It supports erasing pages in full, in 4 KB blocks, 32 KB blocks, or 64 KB blocks. Additionally, it features 2,048 erasable sectors and 128 blocks, providing flexibility for applications requiring dynamic parameter and data storage.
Features of W25Q64 64Mbit 8 MByte FLASH Data Flash module:
- Capacity: 64M-bit / 8M-byte.
- Clock frequency: <104MHz.
- Greater flexibility and performance.
- Low energy consumption.
- It accompanies pin bar.
Package Includes:
- 1 x W25Q64 64Mbit 8MByte Data Flash module SPI Interface BV/FV.
