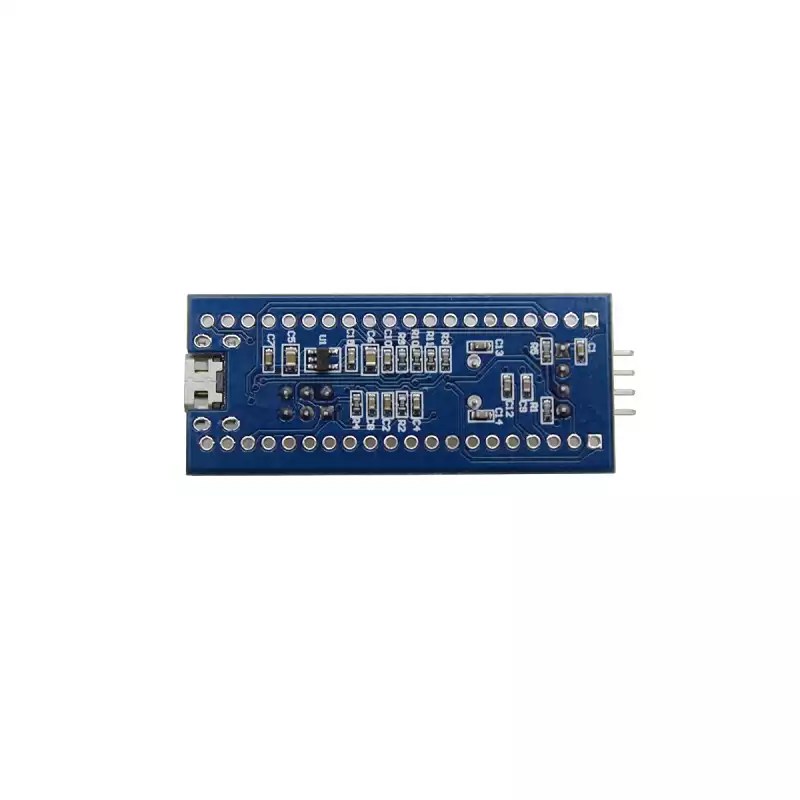

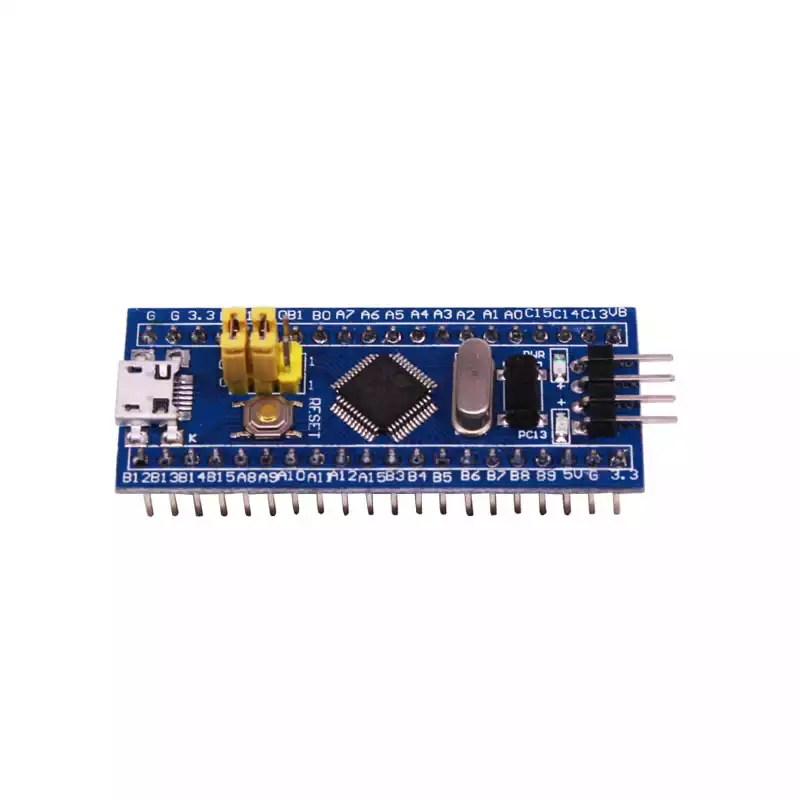

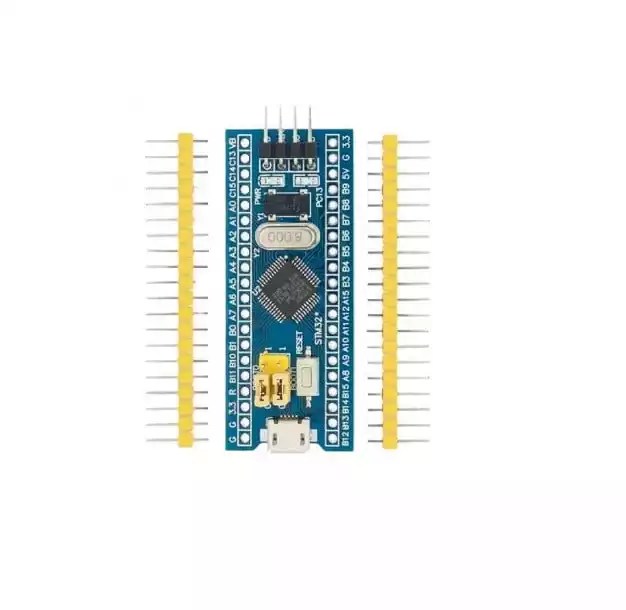

STM32F103C8T6 System Board (Blue Pill) STM32 ARM Core Board (Original)

This is STM32F103C8T6 Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C8T6.Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core.The STM32F103C8T6 microcontroller from STMicroelectronics is a versatile ARM Cortex-M3 based chip designed for embedded applications requiring a balance of performance, power efficiency, and connectivity. Operating at speeds up to 72 MHz, it integrates 64 KB of Flash memory and 20 KB of SRAM, making it suitable for a variety of tasks ranging from industrial control to consumer electronics and IoT devices. With a comprehensive set of peripherals including timers, communication interfaces (USART, SPI, I2C), ADC and DAC channels, and USB 2.0, it offers flexibility for diverse embedded system designs. Its low-power modes and wide operating voltage range (2.0V to 3.6V) enhance energy efficiency, crucial for battery-powered applications. Supported by popular IDEs and development boards like the “Blue Pill,” the STM32F103C8T6 benefits from a robust ecosystem and community support, facilitating rapid prototyping and development. While its memory limitations and peripheral constraints may impact more complex projects, its overall integration, performance, and accessibility make it a preferred choice among developers seeking reliable microcontrollers for embedded applications.

Features:

1. 100% Brand new and high-quality STM32 Board
2. ARM Cortex-M3 core with up to 72 MHz clock frequency ensures swift execution of tasks.
3. 64K flash memory, 20K SRAM.
4. 2.0-3.6V power, I/O.
5. Reset(POR/PDR).
6. 4-16MHz crystal.
7. Onboard Micro USB interface, you can give the board power supply and USB communication.

Pinout Diagram:

Applications:

Ideal for applications demanding high performance and reliability:

• Consumer electronics
• Industrial automation
• IoT devices
• Motor control systems
• Real-time control applications
• Embedded Design & Development
• Medical instruments
• DIY IoT Projects

Why Choose STM32F103?

Engineered to deliver exceptional performance and reliability, the STM32F103 microcontroller empowers developers to create innovative solutions with ease. Whether you’re prototyping a new product or upgrading existing systems, the STM32F103 sets the standard for embedded processing.

Specification:

Package Includes:

1 x STM32F103C8T6 Minimum System Board Microcomputer STM32 ARM Core Board

Tutorials:

1. STM32F103 Bootloader Tutorials
2. STM32 Tutorials
3. STM32 GPIO Tutorial
