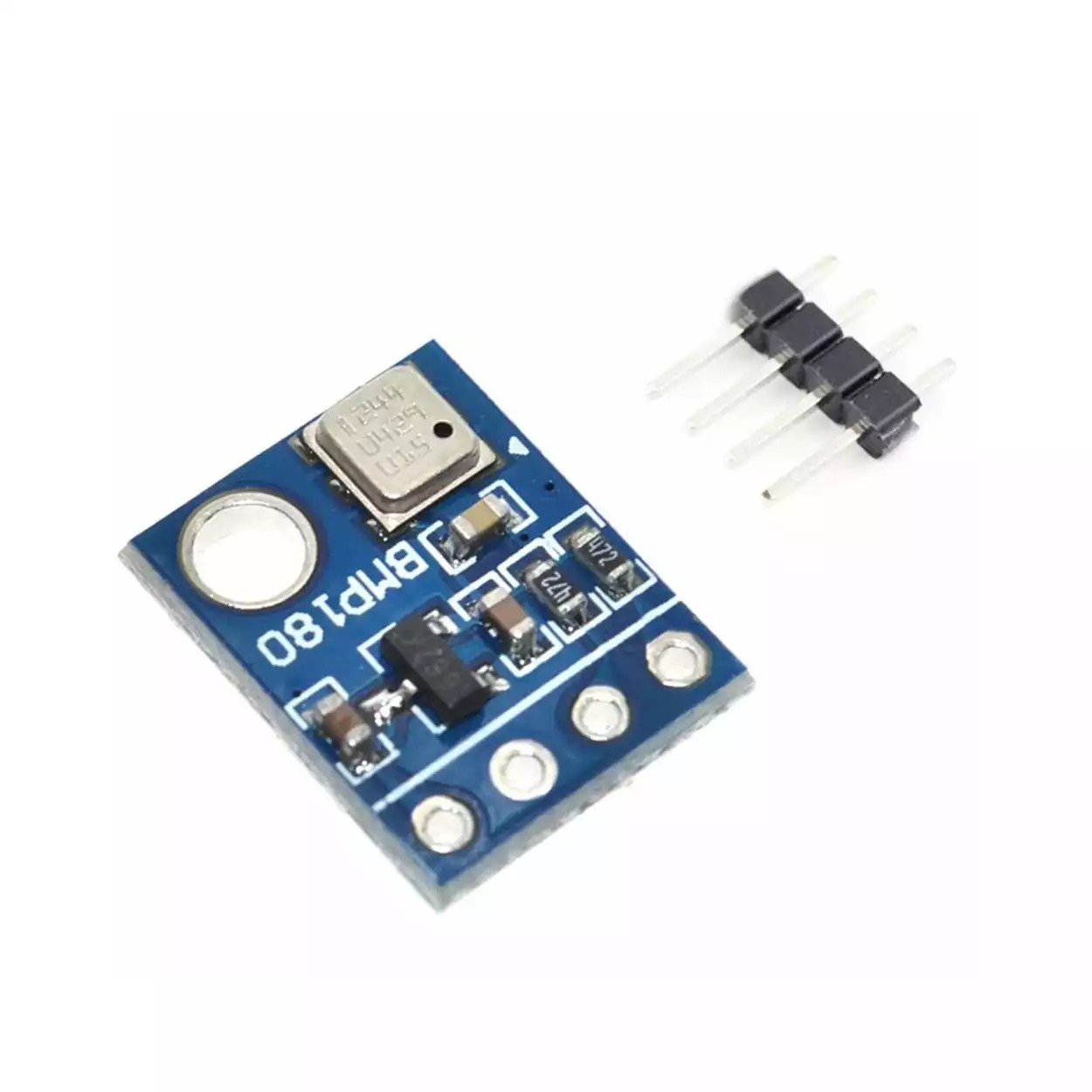

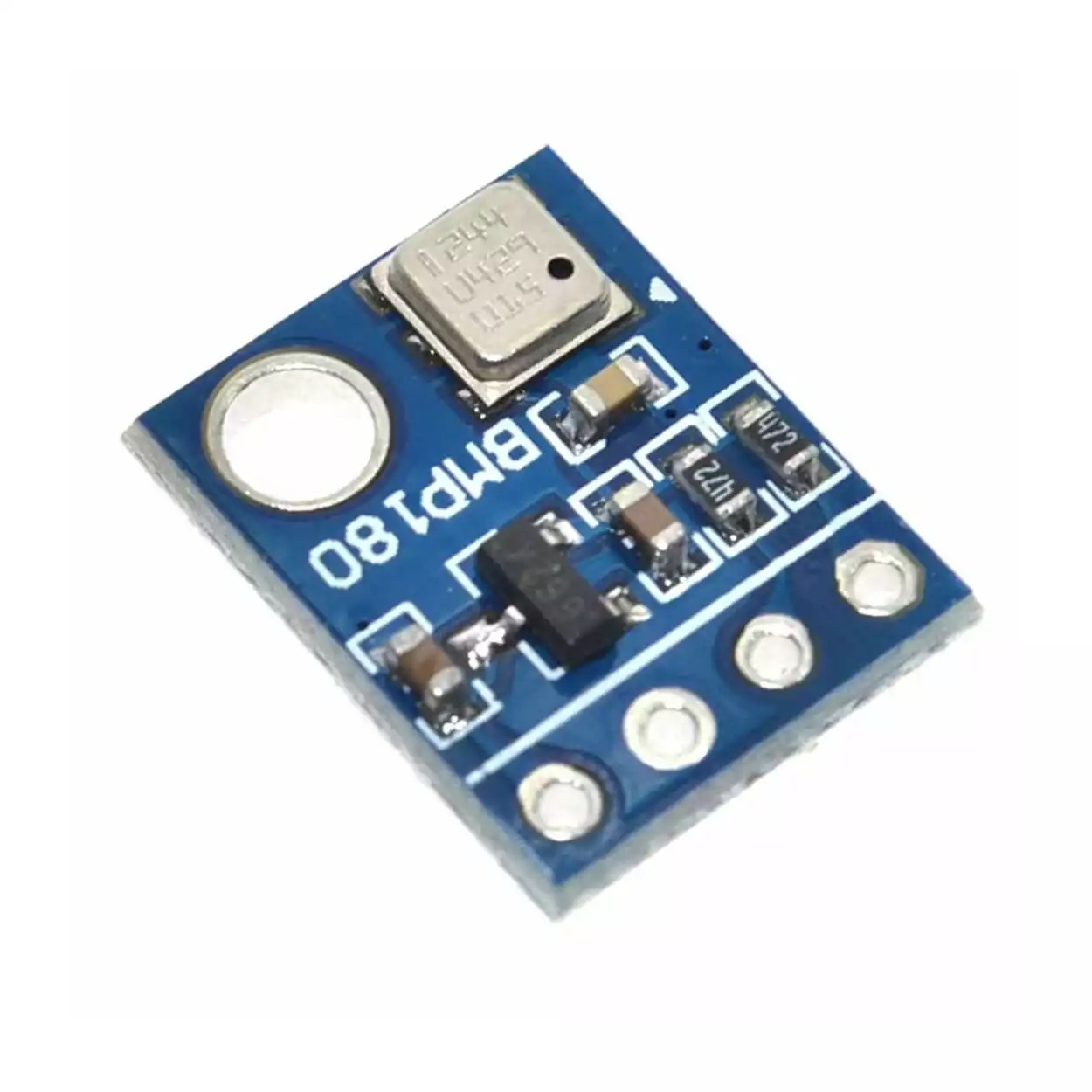

BMP180 Digital Barometric Pressure Sensor Module High Quality
Original price was: ₹356.00.₹210.00Current price is: ₹210.00. (Excl. 18% GST)
Price (Excl. GST): ₹210.00
Price (Incl. GST): ₹247.80
- 1.8V to 3.6V Supply Voltage
- Low power consumption – 0.5uA at 1Hz
- I2C interface
- Max I2C Speed: 3.5Mhz
- Very low noise – up to 0.02hPa (17cm)
- Fully calibrated
- Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
20 in stock
Out of stock
Out of stock
1 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The BMP180 Digital Barometric Sensor Module is compatible with Arduino and designed to measure the absolute pressure of the environment. This feature opens up a variety of exciting applications, especially in altitude measurement. By converting pressure readings into altitude data, the BMP180 becomes a reliable sensor for determining the height of your robot, plane, or projectile. It offers impressive accuracy of ±1 meter, with a noise level of only 17 cm in ultra-high resolution mode, making it suitable for precision tasks.
Operating at just 0.3 µA, the BMP180 is energy-efficient, making it ideal for battery-powered applications. The module comes fully calibrated and is ready for immediate use. It uses the I2C communication protocol, and for added convenience, optional I2C pull-up resistors can be enabled via the PU (pull-up) jumper on the board, simplifying connections during breadboarding.
The BMP180 provides pressure and temperature readings as 16-bit values. These measurements, along with internal calibration data, allow for accurate temperature-compensated altitude calculations, enhancing the module’s versatility in various projects.
You can also buy a Normal-quality BMP180 Digital Barometric Pressure Sensor Module.
Features :
- 1.8V to 3.6V Supply Voltage.
- I2C interface.
- Fully calibrated.
- Very low noise – up to 0.02hPa (17cm)
- Small and easy to use.
Package Includes :
- 1 x BMP180 Digital Barometric Pressure Sensor Module
- 1 x 1x4Burg Connector(Straight)
