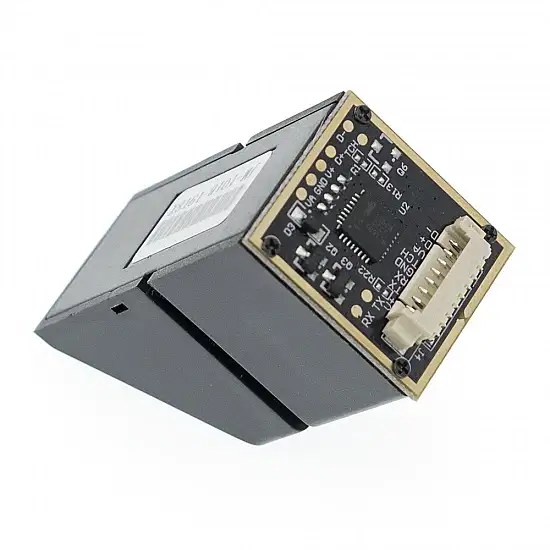

AS608 Fingerprint Reader Sensor Module Optical Fingerprint Fingerprint Module

The  AS608 Optical Fingerprint Sensor Module  is an advanced device designed for secure and efficient fingerprint recognition. This module employs a sophisticated fingerprint algorithm to extract unique features from captured fingerprint images, enabling reliable storage, comparison, and search functionalities.

The fingerprint processing involves two main stages: registration and matching. During the registration process, each fingerprint is captured twice to ensure accuracy, and the processed data is stored within the module.

In the matching phase, the sensor captures a fingerprint image for verification, which is then compared to the stored fingerprints. This comparison can occur in two ways: fingerprint comparison (1:1), where a single fingerprint is matched against a specific template, and fingerprint search (1:N), where the input fingerprint is compared against multiple templates stored in the module. The AS608 provides immediate feedback on the matching result, indicating whether the authentication has passed or failed. This makes it an essential tool for secure access applications.

Features:

• Integrated image collecting and algorithm chip together, ALL-in-One.
• The fingerprint reader can conduct secondary development, can be embedded into a variety of end products.
• Low power consumption, low cost, small size, excellent performance.
• Resolution: 500dpi
• Fingerprint image entry time: <1.0 seconds
• Window area: 15.3×18.2MM
• Communication Interface: USB/UART

Package Includes:

• 1 x AS608 Optical Fingerprint Sensor Fingerprint Module

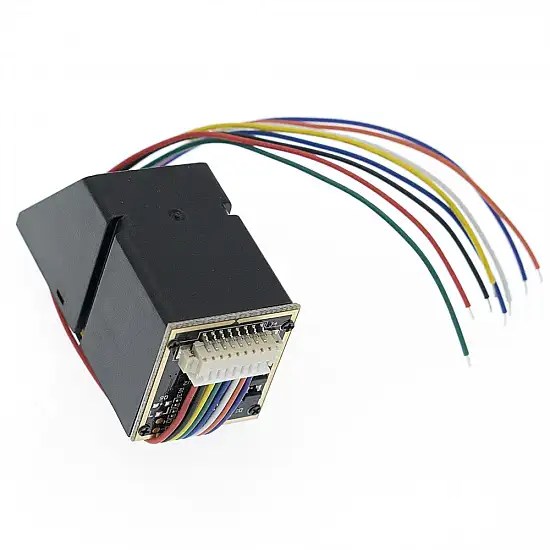

• 1 x Connecting Cable(8-pin).
