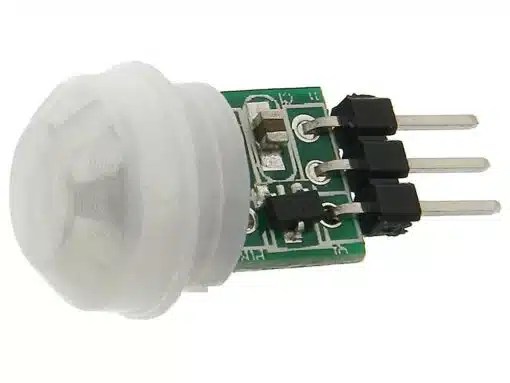

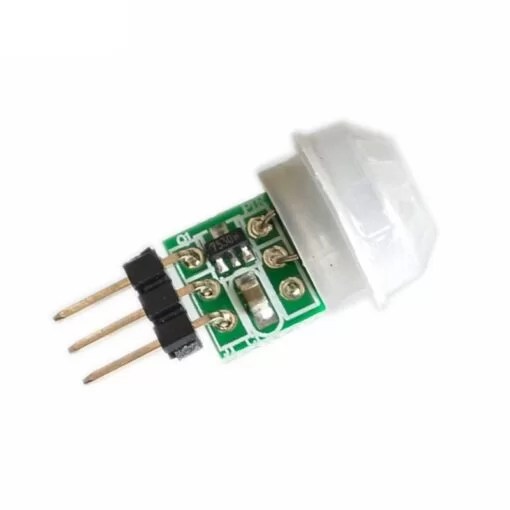

AM312 Mini Infrared Human Motion Sensor
Original price was: ₹271.00.₹78.00Current price is: ₹78.00. (Excl. 18% GST)
Price (Excl. GST): ₹78.00
Price (Incl. GST): ₹92.04
- Operating voltage: DC 2.7-12V;
- Static power consumption: <0.1mA;
- Delay time: 2 seconds;
- Block time: 2 seconds;
- Trigger mode: repeatable;
- Sensing range: ≤ 100 degrees cone angle, 3-5 meters; (according to the specific lens)
- Working temperature: -20 – + 60 ℃
- Module lens: a small lens
7 in stock
17 in stock
6 in stock
22 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The AM312 Mini Infrared Human Motion Sensor is available at an excellent price. This advanced digital infrared sensor is designed for automatic control applications, offering high sensitivity and reliability. The AM312 PIR sensor is ideal for a variety of auto-sensing electrical devices, providing efficient motion detection for both DIY and professional projects.
The AM312 features low power consumption and a compact size, making it easy to integrate into various devices. Its internal digital signal processing ensures strong resistance to interference, while its high sensitivity makes it a crucial component for automatic sensing circuits.
The sensor operates within a voltage range of DC 2.7-12V and consumes less than 0.1mA in static power. It includes a delay time of 2 seconds and detects motion within a 100-degree cone angle and a range of 3-5 meters. With a working temperature range of -20 to +60°C, the AM312 is versatile and reliable in diverse environmental conditions.
Features of AM312 Mini Infrared Human Motion Sensor:
- Low power consumption, small size, easy to install
- Internal use of digital signal processing, pit interference strong
- High sensitivity, reliability, and can be widely used in the automatic sensing circuit
- Repeatable trigger mode: that is, after the induction output is high, in the delay period, if the body in its induction range of activities, the output will remain high until the delay after the person becomes Low level. (Ie, the sensing module automatically detects a delay period after each activity of the human body, and takes the last active time as the starting point for the delay time).
Package Includes:
- 1 x AM312 Mini Infrared Human Motion Sensor
