2.8 inch SPI Screen Module TFT Interface 240 x 320 without Touch
Original price was: ₹1,068.12.₹497.00Current price is: ₹497.00. (Excl. 18% GST)
Price (Excl. GST): ₹497.00
Price (Incl. GST): ₹586.46
- Touch Screen: No
- Input Voltage (V): 3.3 to 5
- Pixel Resolution: 240 x 320
- Driver IC : ILI9341

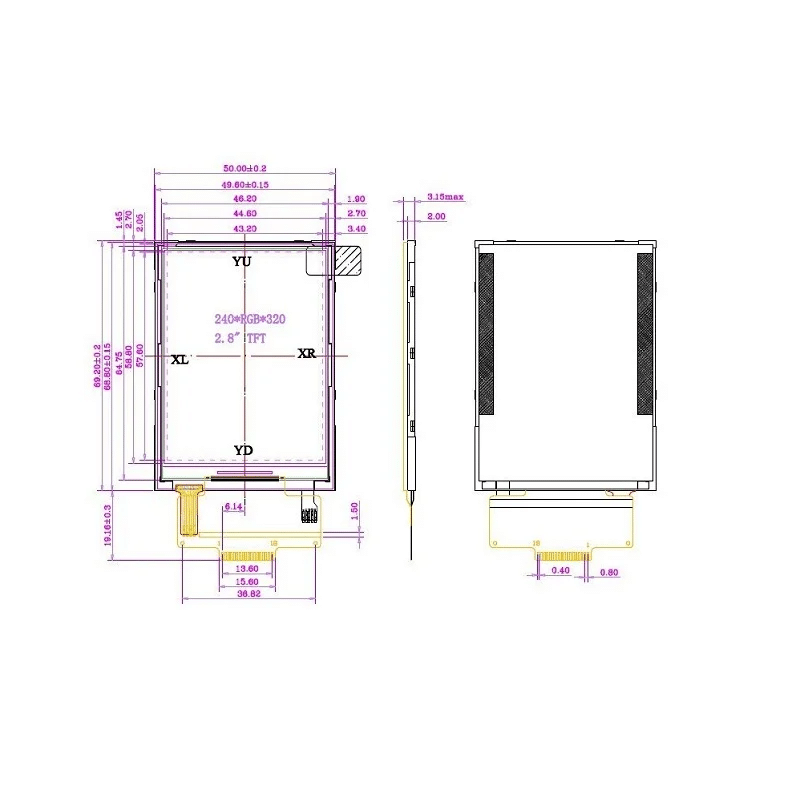

- PCB Size (mm): 85×48 (LxW)
- Display Size: 2.8″
- Weight: 31
7 in stock
Out of stock
1 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

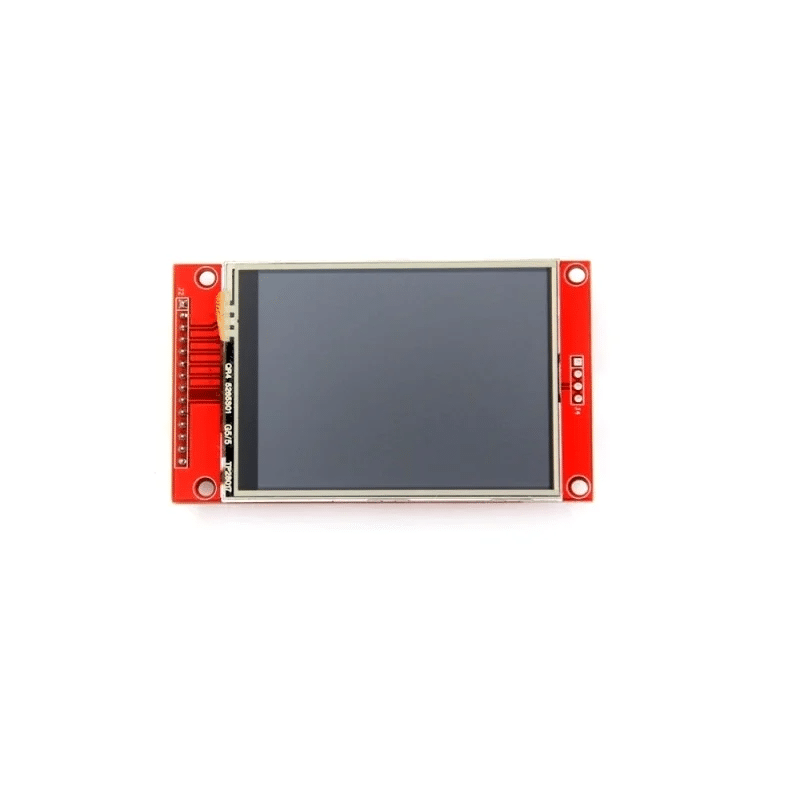

The 2.8 Inch SPI TFT Display Module is a high-quality, full-color LCD screen designed for electronics enthusiasts, DIY projects, and embedded applications. With a bright 2.8″ diagonal screen and a 240×320 resolution, it delivers sharp, vibrant visuals far superior to traditional monochrome 128×64 displays. Each pixel is equipped with RGB control, ensuring rich colors and detailed image rendering.
This module supports two communication modes: 8-bit parallel and SPI interface.
-
In 8-bit mode, you’ll need 8 data lines plus 4–5 control lines, providing fast performance for applications where speed is crucial.
-
In SPI mode, only 5 pins are required (MISO, MOSI, SCK, CS, and D/C), making it ideal for projects with limited I/O pins. However, SPI is slightly slower compared to 8-bit mode.
The breakout board design makes integration easy. One side provides SPI connections, while the other supports 8-bit communication. The module is compatible with both 3V and 5V logic levels, thanks to onboard high-speed level shifters, ensuring seamless use with popular microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi.

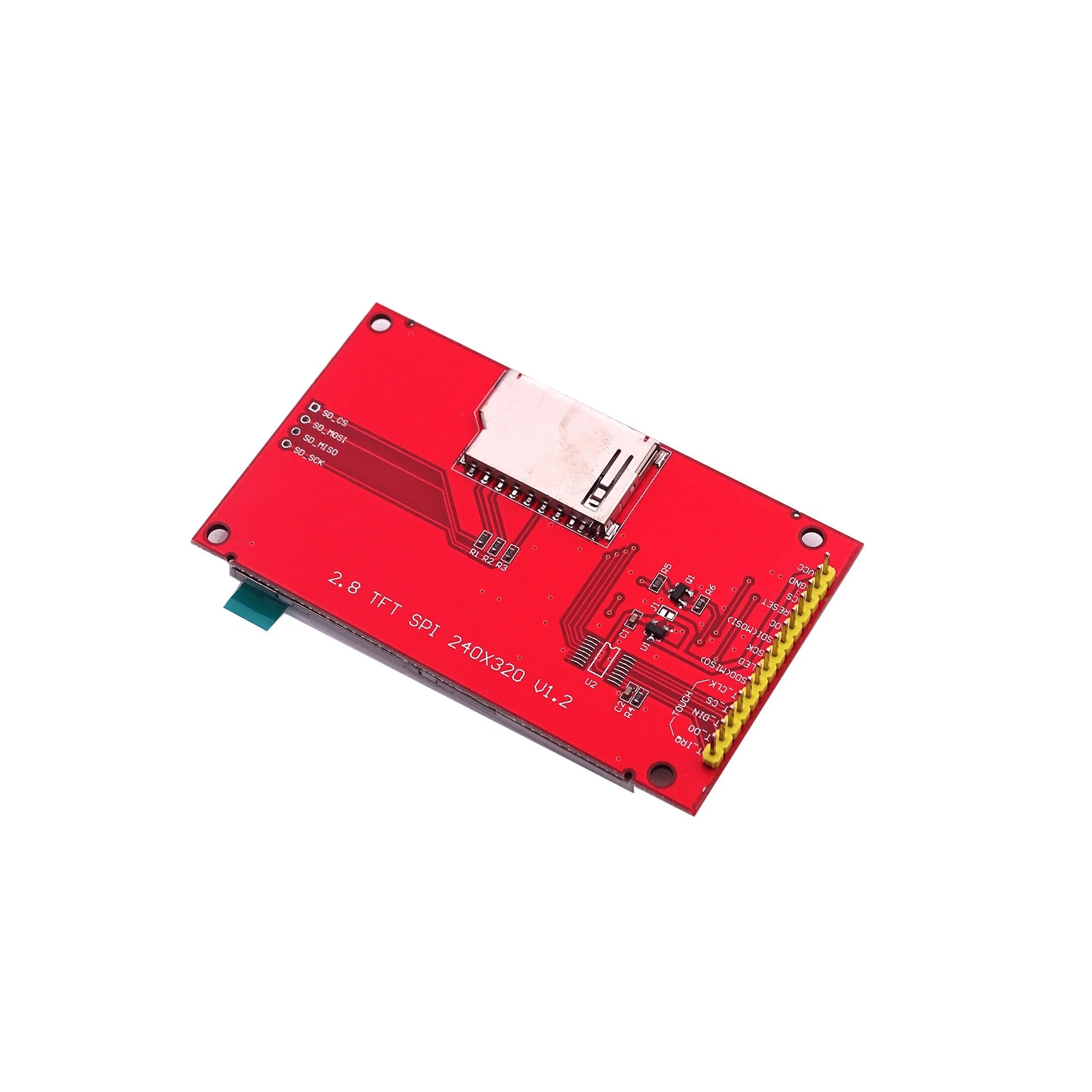

Additionally, the display features an onboard MicroSD card socket, allowing you to store and display images directly from a memory card when using SPI mode. This makes it highly versatile for projects like graphical user interfaces (GUIs), gaming consoles, IoT dashboards, or data visualization systems.
Whether you’re building an Arduino-based display system, an embedded GUI, or a DIY electronics project, this 2.8 inch TFT LCD screen offers excellent resolution, flexibility, and performance in a compact package.
Features
- It shows the color depth of 262K/65K.
- Need at least 4 IOs from your MCU
- The display has a wide viewing angle.
- Big display with good resolution.
Package Include
- 1x 2.8 inch SPI Screen Module TFT Interface 240 x 320 without Touch
