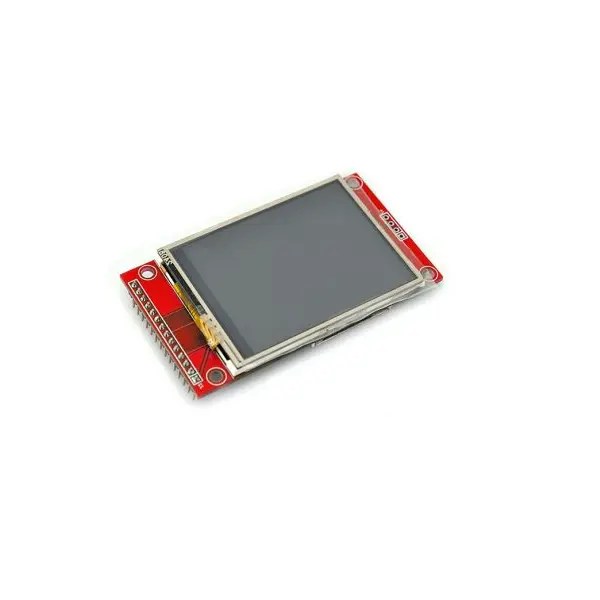

2.4-inch SPI Interface 240×320 TFT Display Module without Touch
Original price was: ₹854.00.₹499.00Current price is: ₹499.00. (Excl. 18% GST)
Price (Excl. GST): ₹499.00
Price (Incl. GST): ₹588.82
- It is a 2.4″ SPI TFT LCD Screen Module
- No Touch Screen
- 10pins interface.
- The LCD drive ic is ILI9341.
- It’s a 240 * 320 (resolution),
| Weight | 26 g |
|---|
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
This 2.4-inch SPI Interface 240×320 TFT Display Module has always been one of the hot products in DIY industry and LCD is basically the necessary product during all projects, at the same time, serial port modules are also the popular ones because it takes few IO and the usage is simple. This section of the 2.4S-inch TFT LCD serial SPI integrated features of compact.
Product Description
- 2.4-inch color screen,support 65K color display,display rich colors
- 320X240 resolution, optional touch function
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Product Specification
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | DIS0009 |
| Screen Size | 2.4(inch) |
| Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 320*240 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Active Area (AA area) | 36.72×48.96(mm) |
| Module PCB Size | 77.18×42.72(mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 26g |

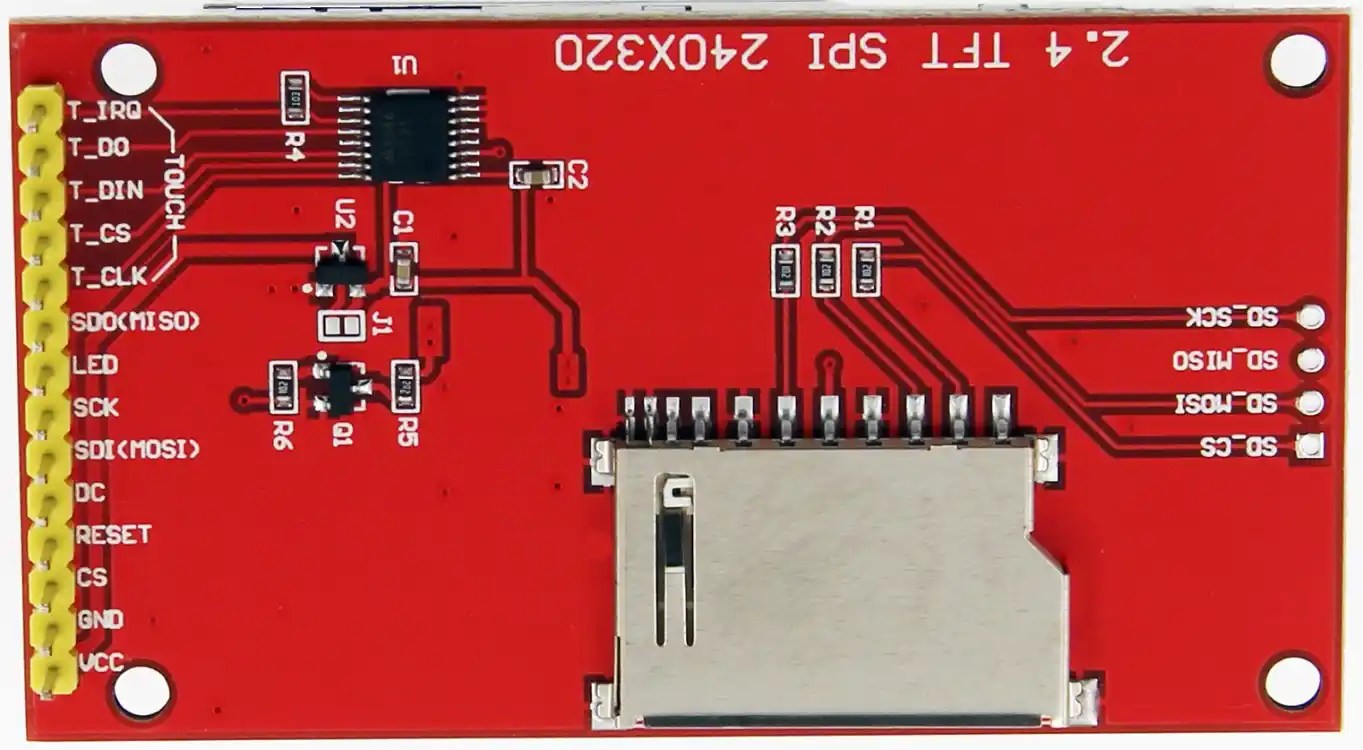

Pin Configuration
| S.No | Pin Label | Description |
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Ground |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | DC/RS | LCD register / data selection signal, high level: register, low level: data |
| 6 | SDI(MOSI) | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | Backlight control, high level lighting, if not controlled, connect 3.3V always bright |
| 9 | SDO(MISO) | SPI bus read data signal, if you do not need to the read function, you can not connect it |
Documents
Product Documentation
- 2.4 inch SPI Module User Manual
- 2.4 inch TFT Specifications
- 2.4 inch SPI Module Size Picture
- 2.4 inch SPI Module Schematic
- Driver IC ILI9341 Data sheet
Package Includes
1 x 2.4-inch SPI Interface 240×320 TFT Display Module
