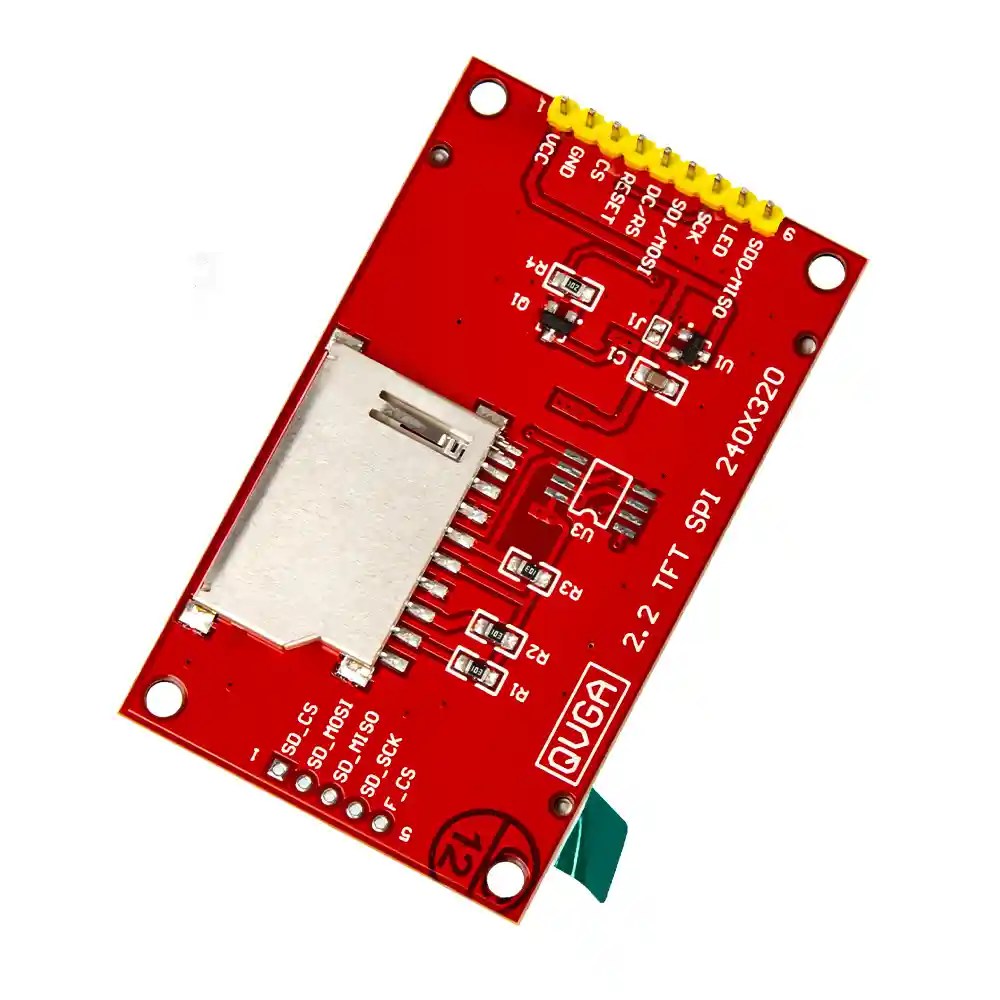

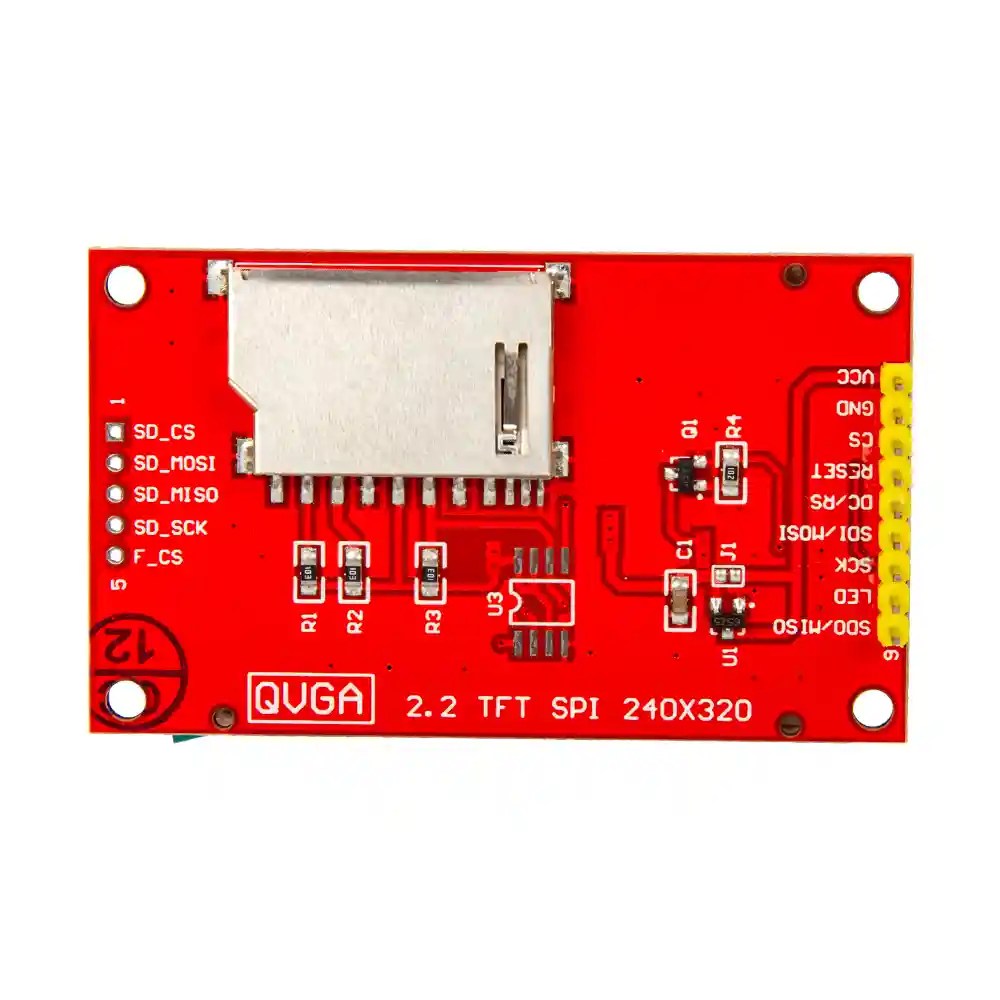

2.2 inch LCD color screen TFT SPI serial interface 240*320 module compatible with 5110
Original price was: ₹1,012.00.₹655.00Current price is: ₹655.00. (Excl. 18% GST)
Price (Excl. GST): ₹655.00
Price (Incl. GST): ₹772.90
- Display Size: 2.2″
- Driver IC: ILI9341
- Input Voltage (V): 3.3 to 5
- Pixel Resolution: 240×320
- Interface Type: SPI
- Easy to expand the experiment with SD card slot
| Weight | 22 g |
|---|
1 in stock
Out of stock
15 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
ILI9341 is a 262144-color single-chip SOC driver for a TFT liquid crystal display with a resolution of 240×320 dots (RGB), comprising a 720-channel source driver, a 320-channel gate driver, 172800 bytes GRAM for graphic display data of 240×320 dots (RGB), and power supply circuit. ILI9341 supports parallel 8-/9-/16-/18-bit data bus MCU interface, 6-/16-/18-bit data bus RGB interface, and 3-/4-line serial peripheral interface (SPI). The moving picture area can be specified in internal GRAM by window address function.
The specified window area can be updated selectively so that moving pictures can be displayed simultaneously independent of the still picture area. ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage and an incorporated voltage follower circuit to generate voltage levels for driving an LCD. ILI9341 supports full color, 8-color display mode, and sleep mode for precise power control by software and these features make the ILI9341 an ideal LCD driver for medium or small size portable products such as digital cellular phones, smartphone, MP3, and PMP where long battery life is a major concern.
Product Specification
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | DIS0007 |
| Screen Size | 2.2(inch) |
| Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 320*240 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Active Area (AA area) | 33.84×45.12(mm) |
| Module PCB Size | 40.10×67.20(mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 22(g) |
Pin Configuration – 2.2 inch LCD color screen TFT SPI
| S.No | Pin Label | Description |
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Ground |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | DC/RS | LCD register / data selection signal, high level: register, low level: data |
| 6 | SDI/MOSI | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | Backlight control, high level lighting, if not controlled, connect 3.3V always bright |
| 9 | SDO/MISO | SPI bus read data signal, if you do not need to the read function, you can not connect it |
Documents
- 2.2 inch SPI Module User Manual
- 2.2 inch TFT Specifications
- 2.2 inch SPI Module Size Picture
- 2.2 inch SPI Module Schematic
- 2.2 inch 14pin QDTFT2201 TFT LCD Schematic and PCB Package Library
- Driver IC ILI9341 Data sheet
Package Includes
1 x 2.2 inch LCD color screen TFT SPI (240*320) serial interface module compatible with 5110
