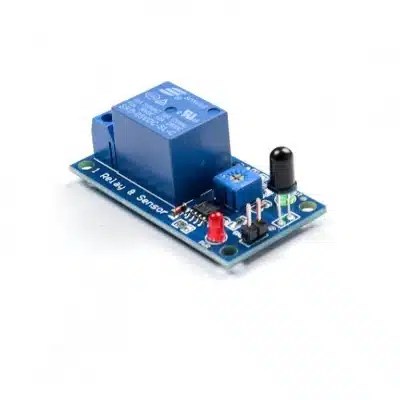

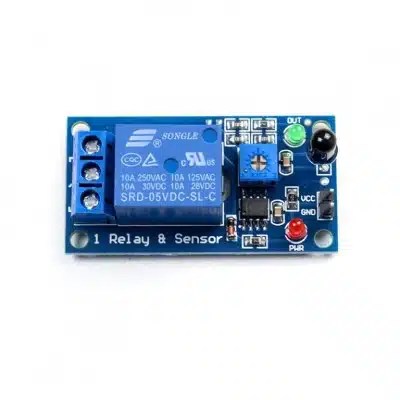

5V Flame sensor module relay module fire alarm
Original price was: ₹233.00.₹123.00Current price is: ₹123.00. (Excl. 18% GST)
Price (Excl. GST): ₹123.00
Price (Incl. GST): ₹145.14
- Operating Voltage (VDC)- 3.3 ~ 5
- Maximum Voltage(V)- 250V AC
- Maximum Operating Current (A)- 10
- Supply Current (A)- 150mA
- Operating Temperature (°C)- -40 to 80
- Opt. Relative Humidity(RH)- 20% ～ 85%
- Operating Distance Range (Meter)- 0.8
- Storage condition (℃)- – 65 to 125
| Weight | 16 g |
|---|---|
| Dimensions | 50 × 26 × 17 mm |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The 5V Flame sensor module relay module fire alarm is an essential tool for fire safety and detection systems. This module utilizes a flame sensor capable of detecting wavelengths between 760 nm and 1100 nm, making it effective for identifying flames and other heat sources. It can test flames from a distance of up to 80 cm, with larger flames allowing for even greater detection distances.
With a detection angle of 60 degrees, the sensor is particularly sensitive to the flame spectrum, ensuring accurate readings. Users can adjust the sensitivity using a blue digital potentiometer, allowing for customization based on specific environmental conditions. The module’s comparator output directly triggers the relay, enabling immediate action when a flame is detected.
For added convenience, the output features a bluish terminal block, simplifying connections to other devices or systems. This user-friendly design makes the Fire Flame Detection Sensor Relay Module ideal for various applications, including industrial settings, safety alarms, and automated fire response systems.
Features:
- Can detect the fire flame or the wavelength at 760 nm to 1100 nm
- Test flame lighters distance of 80cm, the larger the flame, the greater the distance test
- The detection angle of 60 degrees, the flame spectrum particularly sensitive
- Sensitivity adjustable.
Package Includes:
- 1 x 5V Flame sensor module relay module fire alarm
