STM8S105K4T6 Development Board
Original price was: ₹796.00.₹280.00Current price is: ₹280.00. (Excl. 18% GST)
Price (Excl. GST): ₹280.00
Price (Incl. GST): ₹330.40
- 100% Brand new and high-quality STM8 Board
- Model: STM8S105K4T6.
- Core: ARM 8 Cortex CPU.
- 16MHz work frequency.
- 32K flash memory, 2K SRAM.
| Weight | 10 g |
|---|---|
| Dimensions | 49 × 23 × 4 mm |
5 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

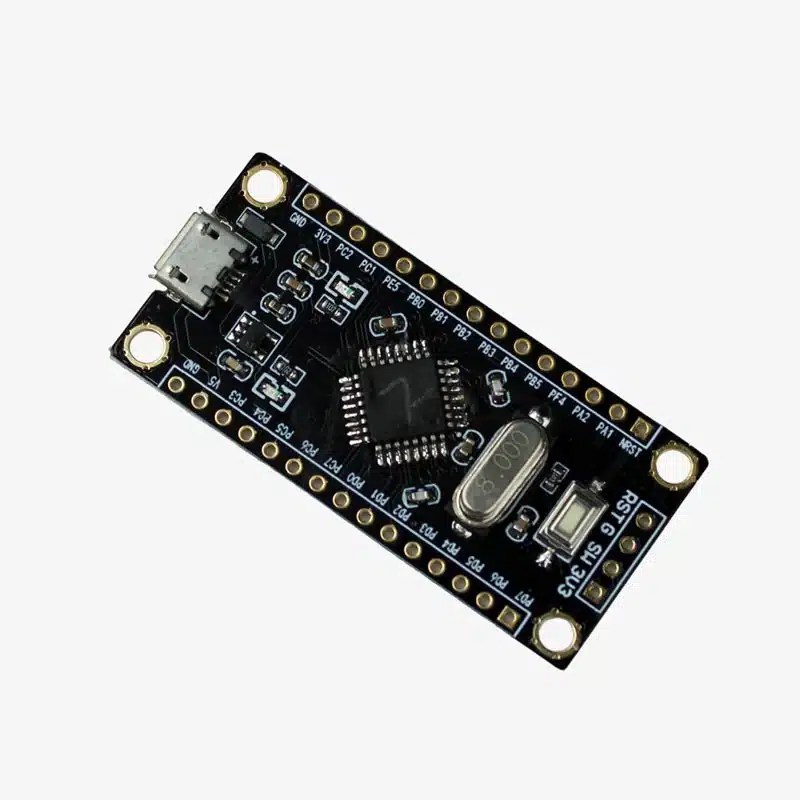

The STM8S105K4T6 Development Board is a powerful and versatile tool designed for electronics enthusiasts and developers. It features an integrated STM8S105K4T6 microcontroller, an 8-bit MCU with 16KB of Flash program memory and true data EEPROM. This board is equipped with a CPU running at 16MHz, along with 16KB of Flash memory, 2KB of RAM, and 1KB of EEPROM.
Similar to an Arduino Nano, the development board offers a range of functionalities, including UART, SPI, I2C, PWM, a 10-bit ADC, three timers, and up to 25 I/O pins, enabling the creation and control of various projects.
It includes a red LED connected to GPIO PE5 (active low) and a push button for resetting the board. The board operates on a 3.3V power supply with an integrated linear regulator for stable performance. The micro USB connector is designed for power supply (5V), with data lines not connected.
With options for an external 8MHz crystal or an internal 16MHz oscillator, the board provides accurate timing for applications. It also features a built-in serial bootloader for easy programming and debugging.
All I/O pins are accessible through header pins, and the board has a designated mounting position for a 4-pin SWIM connector, compatible with the ST-Link flash tool. It supports I2C, UART, and SPI communication protocols, offering flexibility for various connectivity needs.
The STM8S105K4T6 Development Board is an excellent choice for both beginners and experienced developers looking for a reliable and feature-rich platform for their microcontroller projects.
Features of STM8S105K4T6 Development Board:
- LED on PE5, active low.
- External crystal options: 8MHz on PA1/PA2 or internal oscillator with 16 MHz.
- Built-in serial bootloader for easy programming.
- All I/O pins accessible on header pins for convenient connectivity.
- Mounting position for a 4-pin SWIM connector, compatible with the ST-Link flash tool.
- Micro-USB connector designed for power supply only, with data lines not connected.
- 3.3V I/O voltage with an onboard regulator.
- AMS1117-3.3 voltage regulator included for converting 5V power supply to 3.3V.
- Supports I2C, UART, and SPI communication protocols for versatile connectivity options.

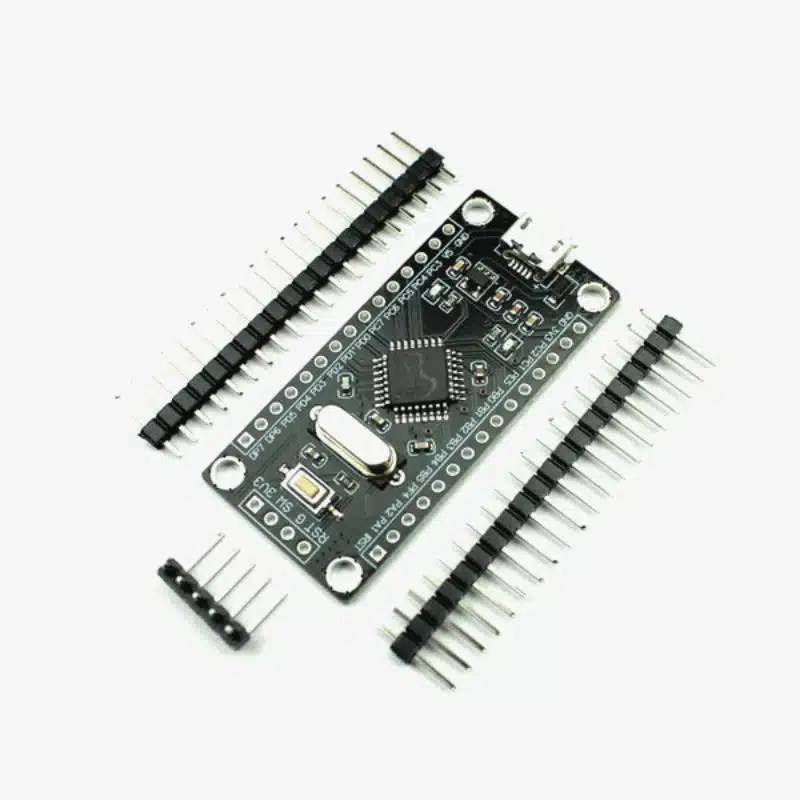

Package Includes:
1 x STM8S105K4T6 Minimum System Board Microcomputer STM8 ARM Core Board
2 x 15 pin Male Header
1 x 4 Pin Right Angle Male Header
