NUCLEO-L433RC-P Development Board, STM32 Nucleo-64, STM32L433RC MCU, Arduino Uno & ST Morpho Connectivity
Original price was: ₹3,999.00.₹2,287.29Current price is: ₹2,287.29. (Excl. 18% GST)
Price (Excl. GST): ₹2,287.29
Price (Incl. GST): ₹2,699.00
- Product: NUCLEO-L433RC-P Development Board
- Core Architecture: ARM
- Core Sub-Architecture: Cortex-M4
- Silicon Family Name: STM32L4
- Silicon Core Number: STM32L433RC
- Silicon Manufacturer: STMicroelectronics
3 in stock
2 in stock
9 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

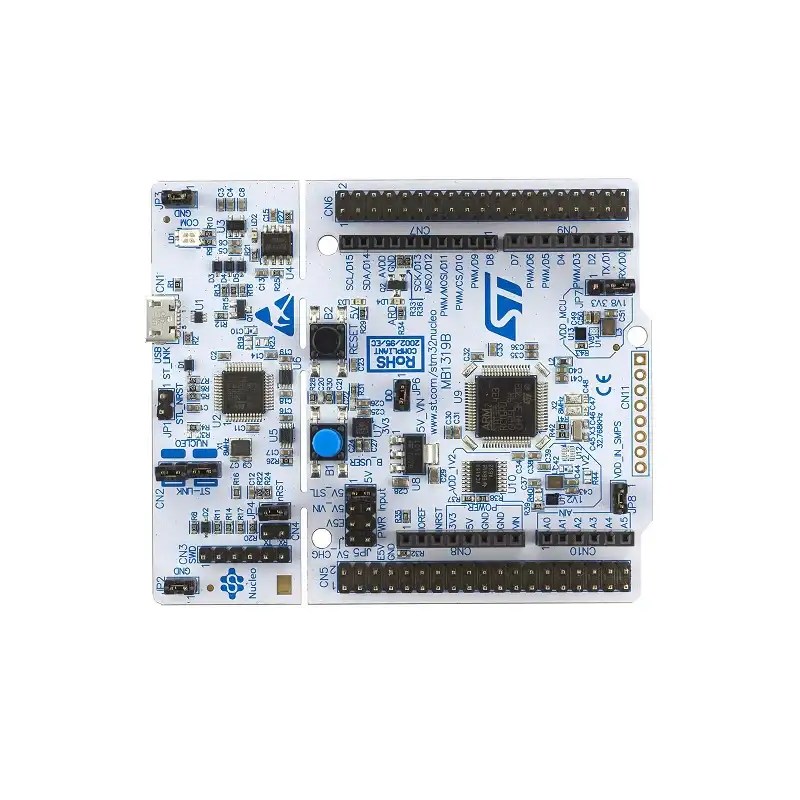

NUCLEO-L433RC-P STM32L433RC Development Board
This is a STMicroelectronics NUCLEO-L433RC-P Development Board.
STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode. The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer. The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
The STM32 Nucleo-64-P boards (NUCLEO-L433RC-P, NUCLEO-L452RE-P) provide an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features.
Features
- STM32 microcontroller in LQFP64 package
- SMPS: significantly reduces power consumption in Run mode
- One user LED shared with Arduino
- Two push-buttons: USER and RESET
- LSE crystal: 32.768 kHz crystal oscillator
- Expansion connectors:
– Arduino™ Uno V3
– ST Morpho
– external SMPS experimentation dedicated connector - Flexible power-supply options: ST-LINK USBVBUS or external sources
- On-board ST-LINK/V2-1
Specs
| Item Type: | Dev. Board |
|---|---|
| Based On: | STM32 Based |
| Model | NUCLEO-L433RC-P |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4 |
| Silicon Core Number | STM32L433RC |
| Silicon Family Name | STM32L4 |
| Silicon Manufacturer | STMicroelectronics |
| No. of Bits | 32bit |
| Shipping Weight | 0.079 kg |
| Shipping Dimensions | 21 × 17 × 3 cm |
Datasheet
Package Includes
- 1 x NUCLEO-L433RC-P Development Board, STM32 Nucleo-64, STM32L433RC MCU, Arduino Uno & ST Morpho Connectivity
* Product Images are shown for illustrative purposes only and may differ from the actual product.
