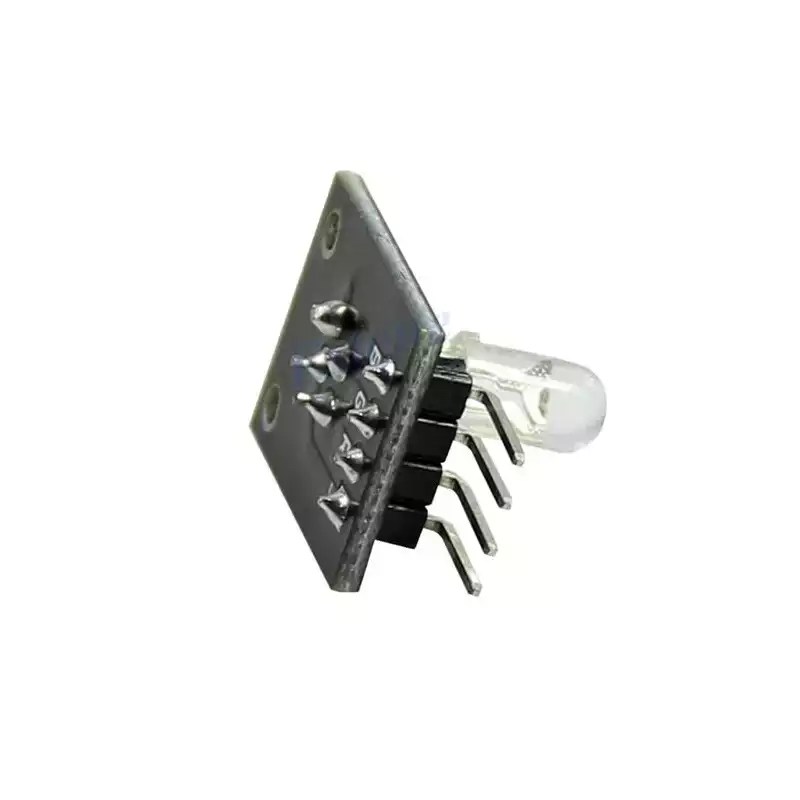

KY-016 DIP 3 Color LED Module 5mm
Original price was: ₹89.68.₹25.00Current price is: ₹25.00. (Excl. 18% GST)
Price (Excl. GST): ₹25.00
Price (Incl. GST): ₹29.50
- The use of plug-in full-color LED.
- RGB trichromatic limiting resistor to prevent burnout.
- Through the PWM adjusting, three primary colors can be mixed to obtain different colors.
- With a variety of single-chip interface.
- The working voltage: 5V.
- LED drive mode: common cathode driver
| Weight | 5 g |
|---|---|
| Dimensions | 20 × 15 × 15 mm |
194 in stock
9 in stock
5 in stock
16 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

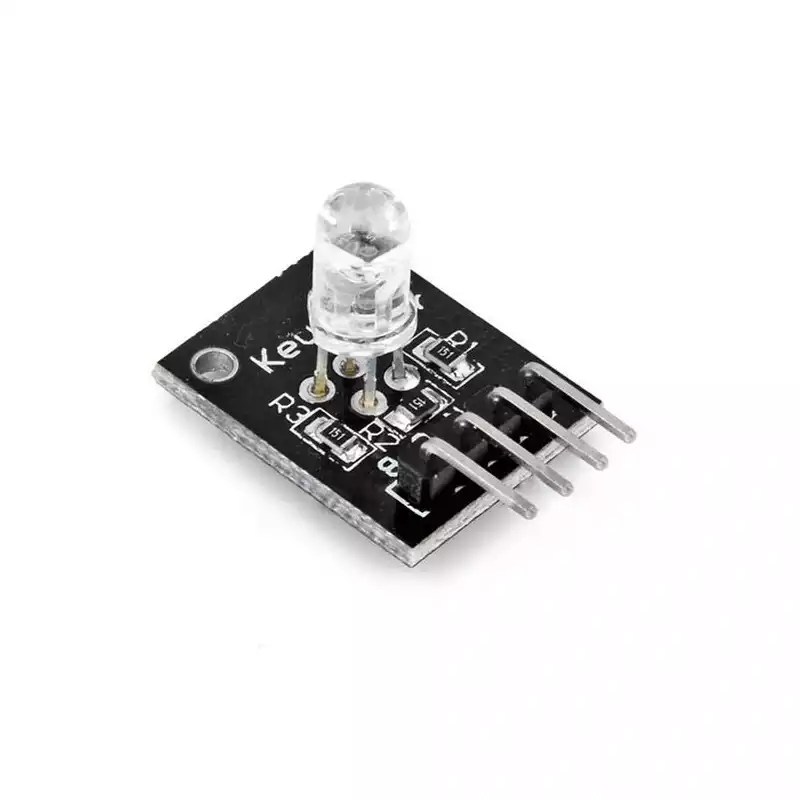

The DIP 3 Color LED Module 5mm features an RGB LED with three 150Ω resistors to prevent damage. By adjusting the PWM (Pulse Width Modulation) signal on each color pin, you can mix red, green, and blue light to create a wide range of colors.
This DIP module allows you to blend colors to achieve various hues and shades.

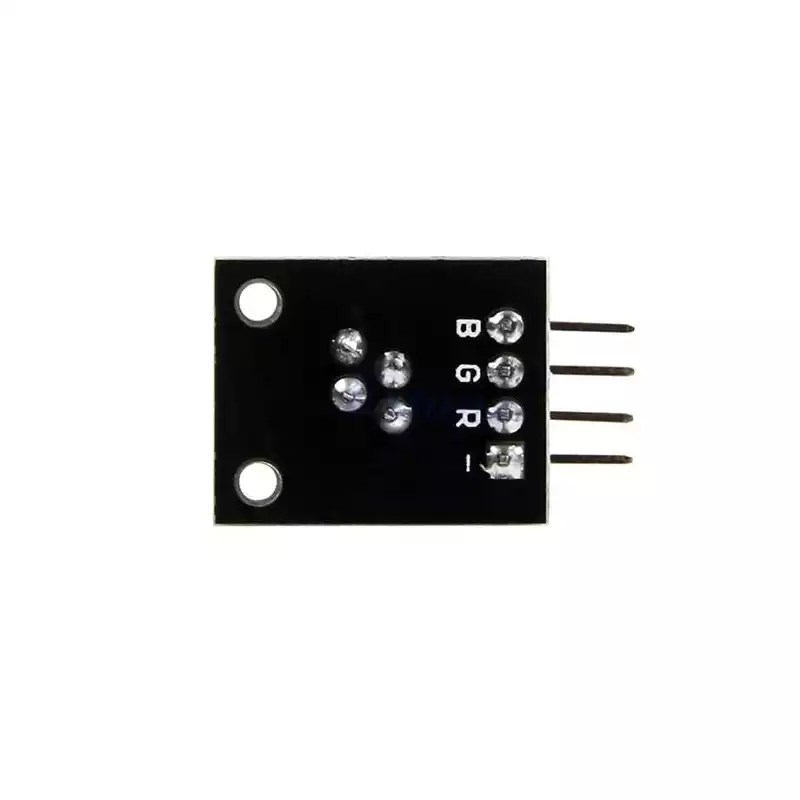

To connect the module to an Arduino, attach the red pin (R) to digital pin 11, the blue pin (B) to pin 10, the green pin (G) to pin 9, and the ground pin (-) to GND. The module includes built-in limiting resistors, so no additional resistors are needed.
Features of DIP 3 Color LED Module 5mm:
- The use of plug-in full-colour LED.
- RGB trichromatic limiting resistor to prevent burnout.
- With a variety of single-chip interface.
- Through the PWM adjusting, three primary colours can be mixed to obtain different colours
- The working voltage: 5V
Package Includes :
1 x DIP 3 Color LED Module.
