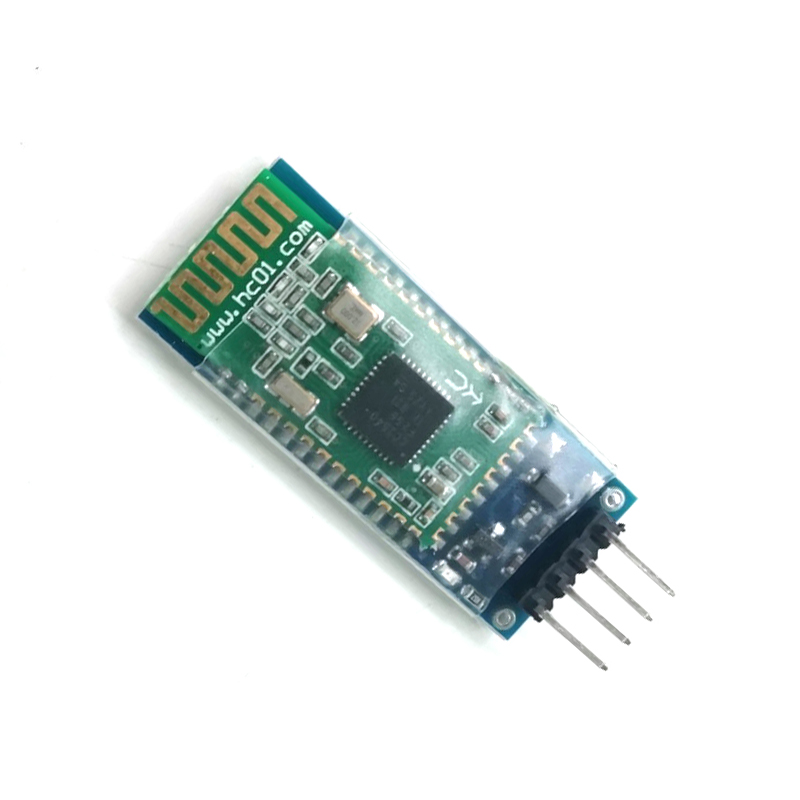

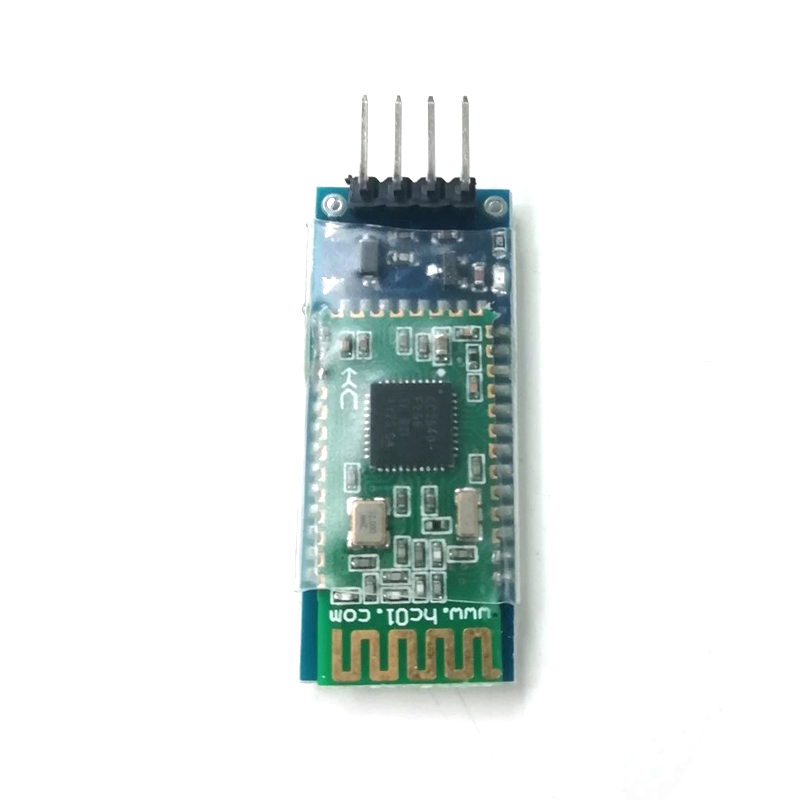

HC-08 4pin Bluetooth Module without Button
Original price was: ₹846.61.₹533.00Current price is: ₹533.00. (Excl. 18% GST)
Price (Excl. GST): ₹533.00
Price (Incl. GST): ₹628.94
- Bluetooth protocol: V4.0 BLE
- 80 meters of extreme Open space distance communication.
- Based on TI CC2540 chipset
- Bluetooth class 2
- Support for on-board applications
- Operating frequency: 2.4 GHz ISM band
- Modulation method: GFSK (Gaussian Frequency Shift Keying
8 in stock
9 in stock
4 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The HC-08 Bluetooth UART communication module is an advanced wireless data transmission solution built on the Bluetooth V4.0 BLE (Low Energy) protocol. Operating in the globally accepted 2.4GHz ISM frequency band, the HC-08 utilizes GFSK modulation to deliver stable, low-power, and interference-resistant communication. Designed for modern IoT and embedded applications, this module provides a maximum transmit power of 4dBm and an impressive receiving sensitivity of –93dBm, enabling reliable data transmission even in challenging environments. Under open and unobstructed conditions, the HC-08 can maintain long-distance connectivity up to 80 meters, making it compatible with devices such as the iPhone 4s and many other BLE-enabled products.
At the core of the HC-08 is the powerful Texas Instruments CC2540 chip, equipped with 256K bytes of onboard memory. This allows developers to store larger configurations and ensures smooth, efficient communication. The module supports a flexible set of AT commands, enabling users to easily modify its operating role, UART baud rate, device name, advertising interval, and other essential parameters. This adaptability makes integration simple for both beginners and advanced developers.
The HC-08 is widely used for short-range wireless data applications, including Bluetooth sensor data transmission, industrial remote control, wireless telemetry, traffic monitoring, underground positioning, security alarms, smart home automation, and more. It also serves as an excellent industrial Bluetooth serial port module, offering a “drop-in” wireless replacement for traditional wired UART connections. With its compact size, low energy consumption, and reliable performance, the HC-08 stands out as a high-value module for building efficient, low-power IoT systems and Bluetooth communication networks.
Note: Default pairing code is 1234
Features
- Based on TI CC2540 chipset
- Bluetooth class 2
- Industrial level SPP Bluetooth module
- Integrated chip antenna
- Industrial temperature range from -40 to +85
- Support for on-board applications
- Modulation method: GFSK
- Transfer rate: Asynchronous: 6 KBPS Synchronous: KBPS
Package Includes
- 1 x HC-08 4pin Bluetooth Module without Button
