DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control
Original price was: ₹550.57.₹289.00Current price is: ₹289.00. (Excl. 18% GST)
Price (Excl. GST): ₹289.00
Price (Incl. GST): ₹341.02
- Operating Voltage: 12V
- Control Distance: 8m / 314.96 inch
- Operating Temperature: -40 to 90°C
- Material: FR4
- Length: 50mm
- Width: 20mm
- Height: 18mm
- Weight: 30gm
5 in stock
Out of stock
2 in stock
27 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
You can also purchase DC 5V 1 Channel Relay Module Infrared IR Remote Switch Control.
Description

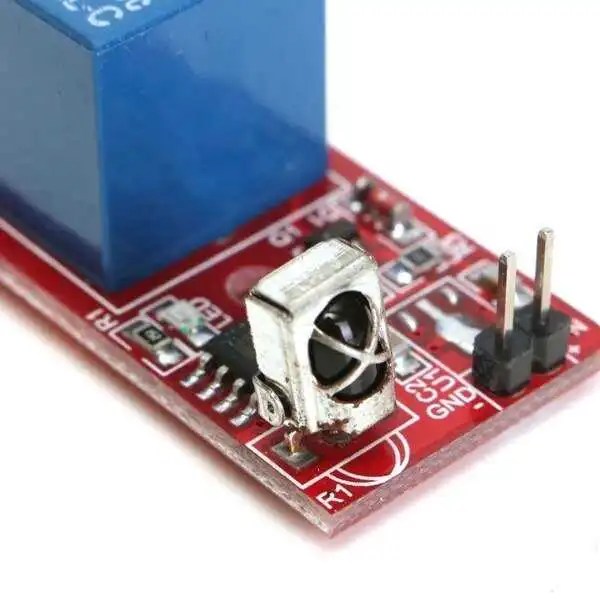

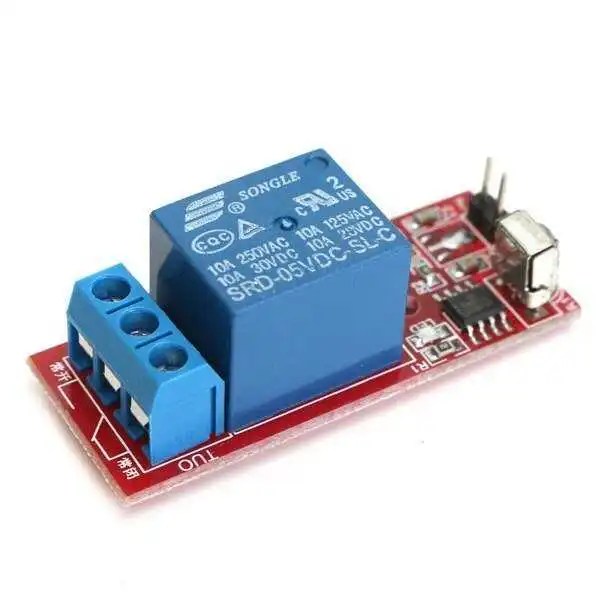

The power supply of the receiving board is 12V (VIN+ is connected to 12v positive, GND- is connected to 12V negative), the board size is 20*50mm high and 20mm, the static working current is less than 1mA, the suction current is less than 80mA, the remote control distance is up to 8 meters, the receiving board must be equipped with the remote control of this kit, other remote controls are not recognized, the module provides normally open and normally closed interfaces after electrical isolation, and the load capacity of the relay is 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A, can drive most household appliances or other equipment to achieve remote control function.

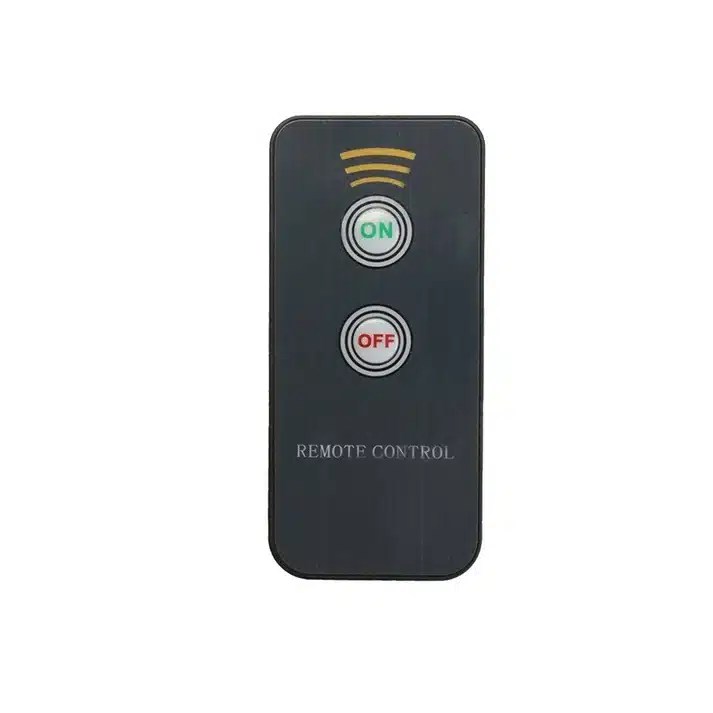

This connection is a self-locking receiver + remote control kit, the relay engagement LED of the receiving board is on when the 2-button remote control is pressed ON, and the relay releases the LED when OFF is pressed, so it can realize 1-way self-locking remote control switch.
Specifications
| Operating Voltage (VDC) | 12 |
| Supply Current (A) | 0.07 |
| Operating Temperature (°C) | -40 to 90 |
| Maximum Supported Output | 10A 28VDC 7A 240VAC 10A 125VAC |
| Operating Distance Range (Meter) | 1 ~ 5 |
| Storage condition (℃) | -40 to 80 |
| Length (mm) | 50 |
| Width (mm) | 20 |
| Height (mm) | 18 |
| Weight (gm) | 30 |
Features
- The standard interface can be directly connected with microcontrollers.
- With the LED indicator light (For connection, and disconnection).
- The 12V 1 Channel IR Relay has normally closed contact and normally open contact.
- With the relay coil absorber diode protection.
- Active-low signal input, VCC, GND power supply input terminal.
Package Included
- 1 x DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control
Note: Battery is not included in remote. (Suitable battery is CR2025 batteries)
