Official TMDS64EVM AM64x Evaluation Module for Sitara™ Processors
Original price was: ₹49,999.00.₹36,999.00Current price is: ₹36,999.00. (Excl. 18% GST)
Price (Excl. GST): ₹36,999.00
Price (Incl. GST): ₹43,658.82
-
Official TI evaluation module for AM64x Sitara™ processors
-
Supports industrial, networking, and real-time control applications
-
Features multi-core Arm® Cortex® processors for high performance
-
Multiple connectivity options – Ethernet, USB, Serial, and more
-
On-board debug and expansion interfaces for rapid prototyping
-
Compatible with TI development tools and SDKs
-
Ideal for embedded system designers, engineers, and developers
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

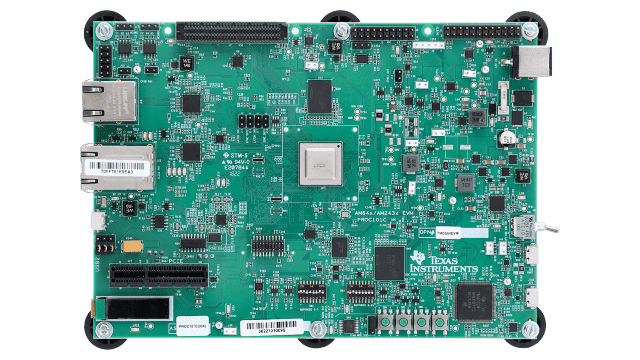

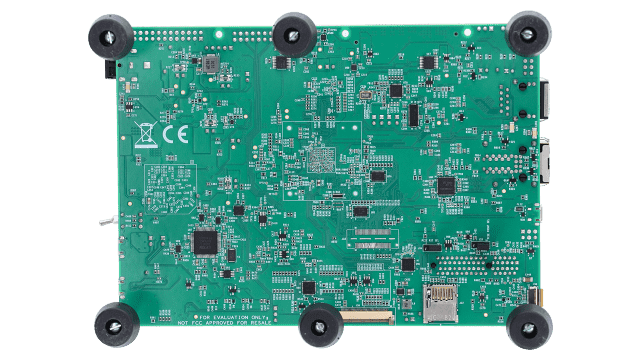

The TMDS64 evaluation module (EVM) is a stand-alone test and development platform ideal for accelerating the prototype phase of your next design. TMDS64EVM is equipped with a Sitara™ AM6442 processor, along with additional components that allow the user to make use of various device interfaces, including industrial Ethernet, standard Ethernet, peripheral component interconnect express (PCIe), fast serial interface (FSI) and others to easily create prototypes.
An onboard display makes use of AM64x serial peripheral interface (SPI) ports to provide the ability for local visual outputs in addition to the LEDs. Onboard current-measurement capabilities are available to monitor power consumption for power-conscious applications.
During custom board design, customers tend to reuse the SK design files and make edits to the design file. Alternatively customers reuse some of the common implementations including the SOC, memory and communication interfaces. Since the SK is expected to have additional functionalities, customers optimize the SK implementation to suit their board design requirements. While optimizing the SK schematics, errors get introduced into the custom design that could cause functional, performance or reliability issues. When optimizing customers have queries regarding the SK implementation resulting in design errors. Many of the optimization and design errors are common across designs. Based on the learnings and data sheet pin connectivity recommendations, comprehensive Design Notes (D-Note:), Review Notes (R-Note:) and Cad Notes (Cad Note:) have been added near each section of the SK schematic that customers could review and follow to minimize errors. Additional files as part of the design downloads have been included to support customer evaluation.
For Datasheet click Here.
Features
- AM64x with 2x Arm Cortex-A53, 4x Arm Cortex-R5, 1x Arm Cortex M4, and 2x PRU-ICSSG
- Three RJ45 Ethernet ports capable of 1Gb or 100Mb speeds
- Real-time, low-pin-count FSI interface for easy connection with C2000™ MCUs
- 1-in display and LEDs for convenient visual outputs
- Four-lane PCIe connector to interface one-lane PCIe card
- High Speed Expansion (HSE) connector to connect application cards
- Onboard power-measurement capabilities

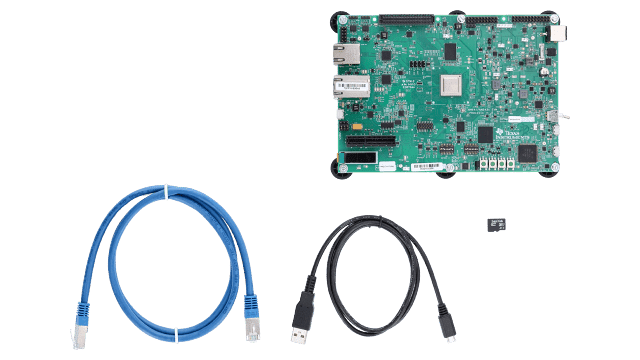

Package Includes
- 1x TMDS64EVM AM64x Evaluation Module for Sitara™ Processors
