MAX7219 8×8 LED Dot Matrix Module with cable (Red)
Original price was: ₹198.00.₹135.00Current price is: ₹135.00. (Excl. 18% GST)
Price (Excl. GST): ₹135.00
Price (Incl. GST): ₹159.30
- Driver Chip: MAX7219
- Input Voltage: 4-5.5V
- Input Current 330mA
- Requires only 3 communication wires of MCU
- A single module can drive an 8 * 8 common cathode LED
- Connecting wires included
- Easy to interface with variety of MCU platforms
- SPI based control
3 in stock
10 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

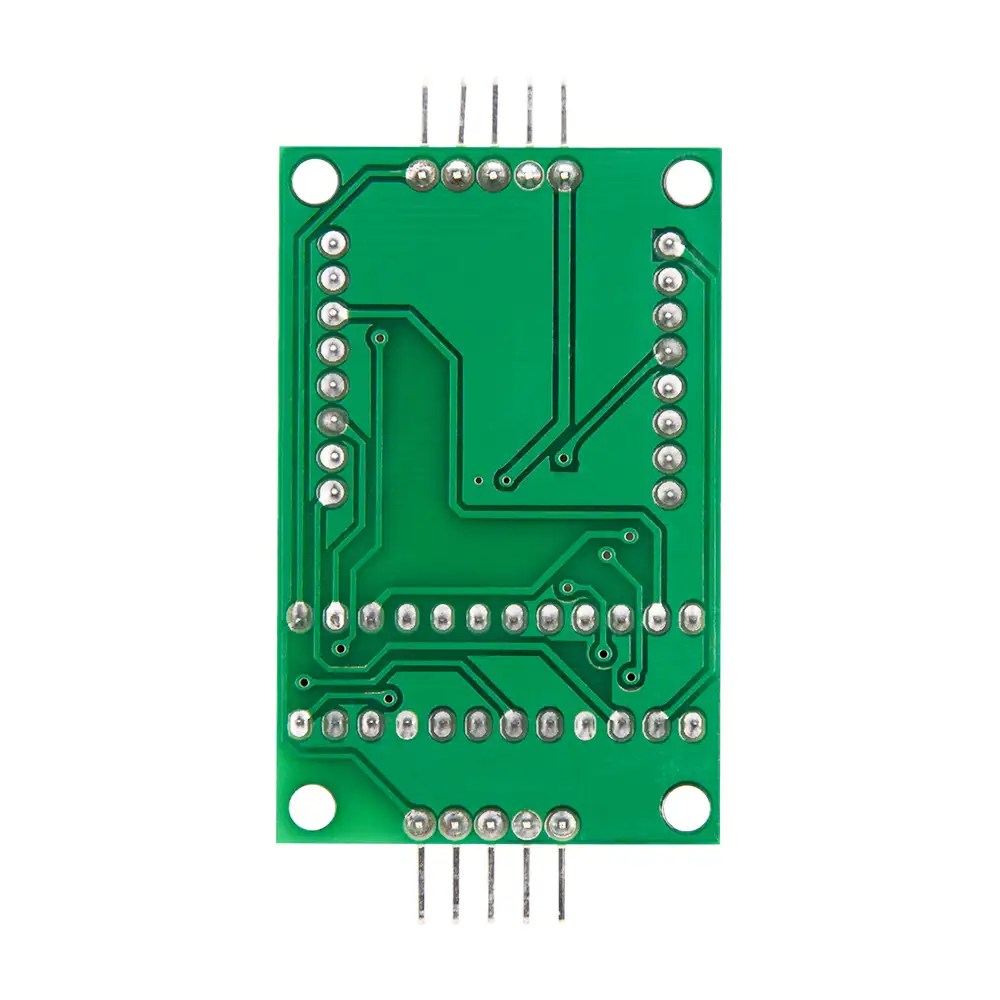

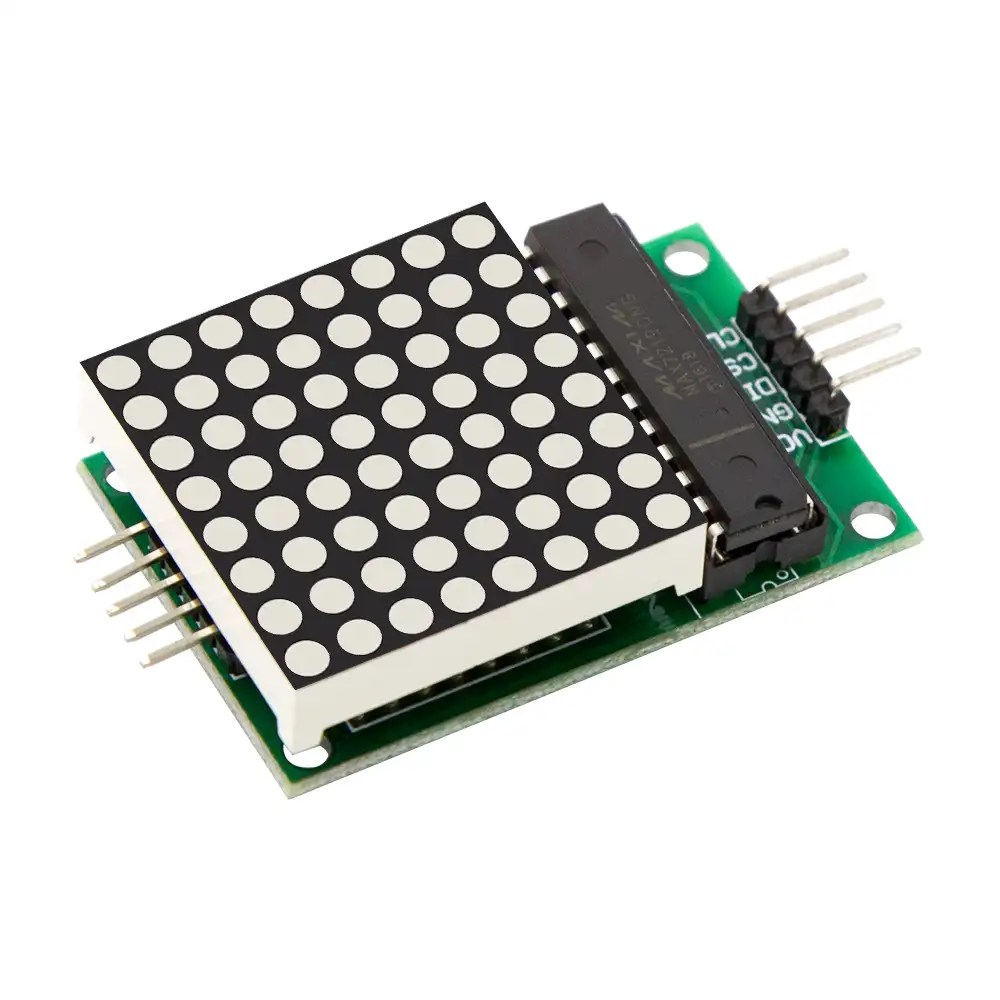

MAX7219 8×8 LED Dot Matrix Module
The MAX7219 is an integrated serial input / output common-cathode display driver, it is connected to a microprocessor with 8-digit 7-segment digital LED display can also be connected to the bar graph display or 64 separate LED. On B BCD encoder including an on-chip, multi-channel scanning loop word drive, but also an 8 x 8 static RAM is used to store each data. Only one external register is used to set the current of each LED segment.
A convenient four-wire serial interface can connect all general-purpose microprocessor. Each data can be addressed in the update does not need to rewrite all the display. MAX7219 also allows the user to select on each data coding or non-coding.
The entire device contains a 150μA low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display the 1-8 bits of data, as well as a let all LED light detection mode.
Only need three IO ports can drive a dot-matrix! Dot-matrix display, flicker-free! Supports cascading!
Features
- A single module can drive an 8 * 8 common cathode lattice
- Module operating voltage: 5V
- Module size: 5 cm in length X width 3.2 cm x 1.5 cm
- Including four screws hole, aperture 3mm
- Module with input and output interface, supports multiple modules cascade
MAX7219 8×8 LED Dot Matrix Module Specification
| Driver IC | MAX7219 |
|---|---|
| Input Voltage (V) | 5 |
| Max. Operating Current (mA) | 320 |
| LED Color | Red |
| Length (mm): | 32 |
| Width (mm): | 32 |
| Height (mm): | 6 |
| PCB Size ( L x W ) mm | 50 x 32 |
| Weight (g): | 20 |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 7 × 5 × 3 cm |
Pin Configuration
Vcc – 5V
GND – GND
DIN – Data Input
CS – Chip Select
CLK – Clock
Note: VCC and GND should not be connected reversed, so as not to burn the chip
Documents
Package Includes
- 1 x MAX7219 8×8 LED Dot Matrix Module
- 1 x Connecting Wire
