Digi ConnectCore® MP133 STM32MP133C with Arm® Cortex®-A7 Development Kit – 602-CC-WMP133-KIT-ND (included Dev Board)
Original price was: ₹24,999.00.₹10,999.00Current price is: ₹10,999.00. (Excl. 18% GST)
Price (Excl. GST): ₹10,999.00
Price (Incl. GST): ₹12,978.82
- Gigabit Ethernet + 10/100 Mbit Ethernet
- (2) USB Host, 1 x USB OTG
- (2) CAN-FD
- MicroSD card
- PCIe minicard with SIM card holder
- MikroE Click boards™ connector
- Console over USB
- Digi XBee (including Digi XBee Cellular support)
- Audio (microphone and headphones)
- User buttons and LEDs
2 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The CC-WMP133-KIT is a complete development platform designed to accelerate development with the Digi ConnectCore® MP133 System-on-Module (SOM). This kit includes the development board and a Digi ConnectCore MP133 SOM with 256MB NAND and 256MB DDR3L, along with a 1-year license for Digi ConnectCore® Cloud Services Premium. It provides developers with a robust foundation for building connected embedded systems, particularly suited for industrial and medical applications that demand high levels of security, reliability, and performance.

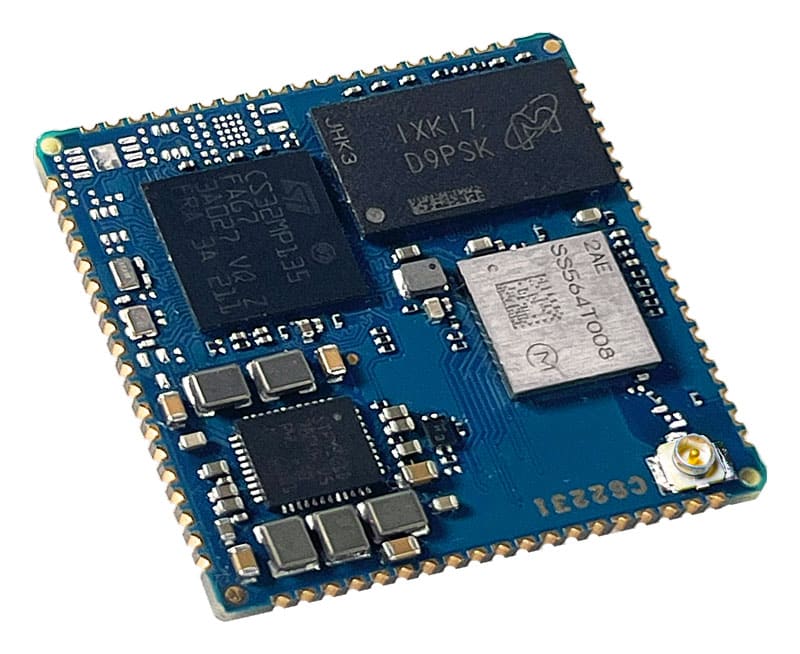

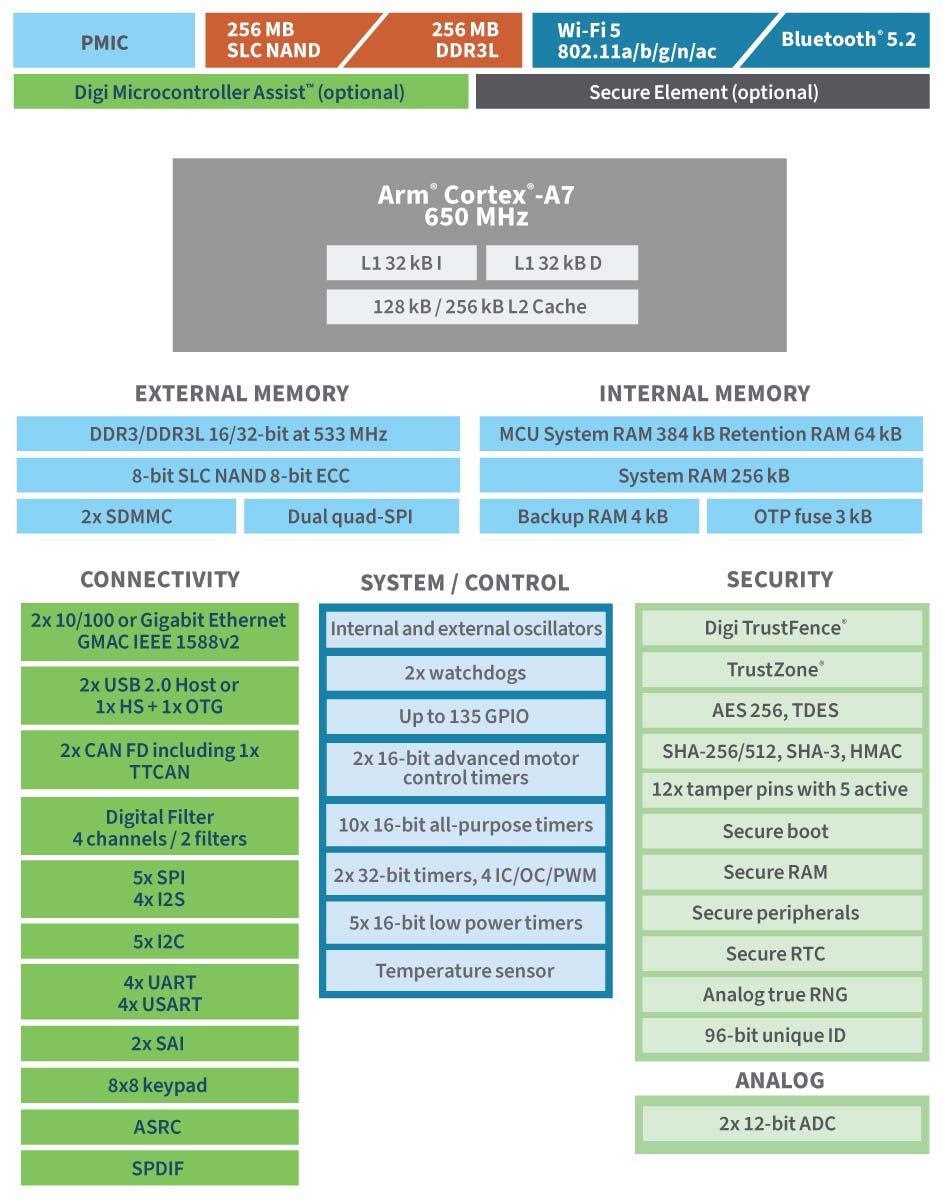

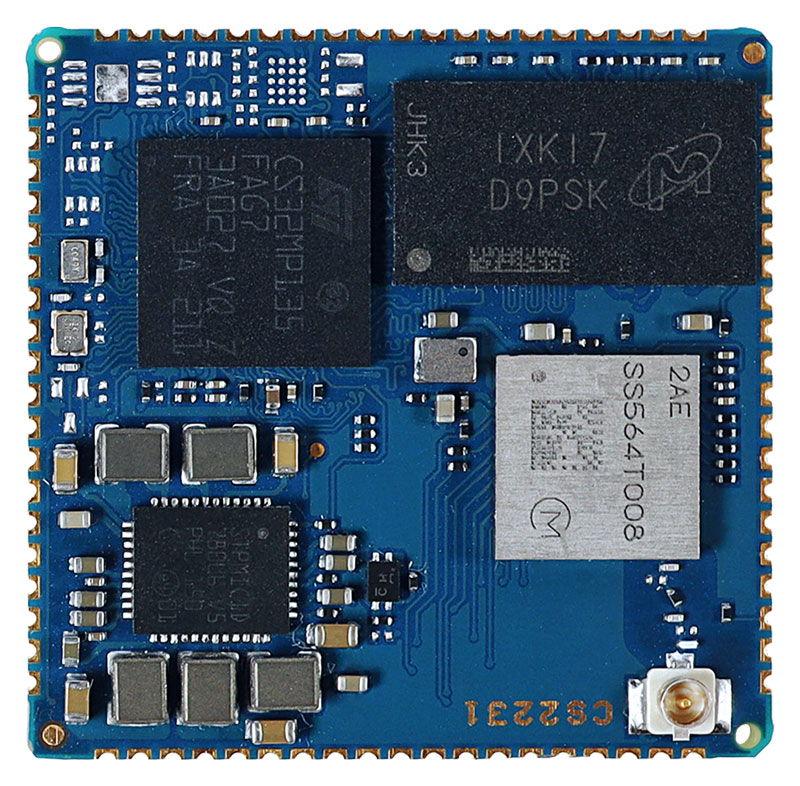

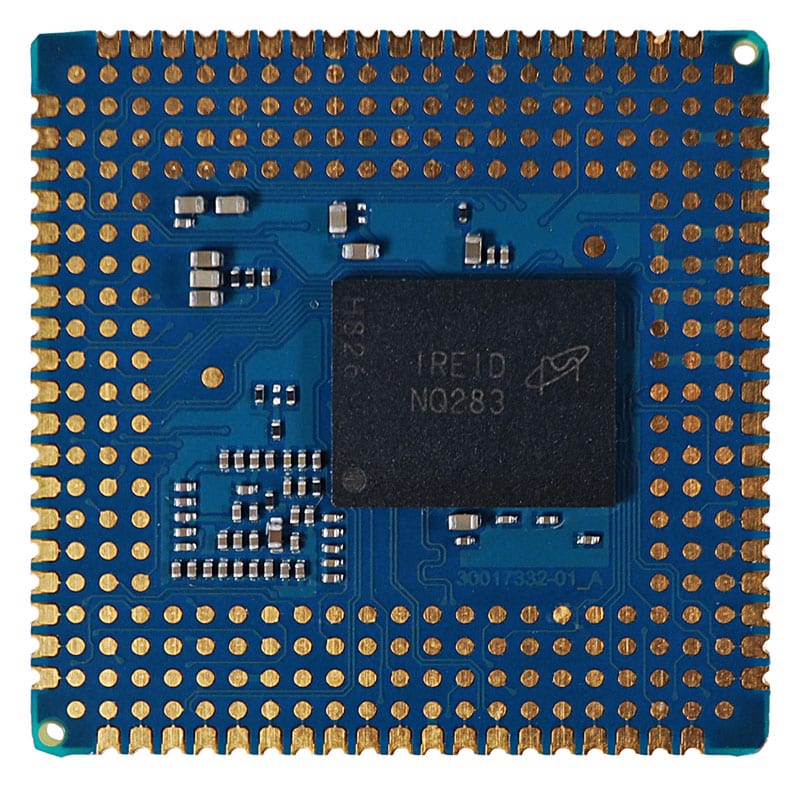

The heart of the kit is the Digi ConnectCore MP133 SOM, based on the STM32MP13 microprocessor, which features an embedded dual-band Wi-Fi 5 (802.11a/b/g/n/ac), Bluetooth 5.2, and Gigabit Ethernet connectivity, ensuring seamless network integration across a wide range of deployment scenarios. Its industrial-grade design ensures long-term availability with a guaranteed 10+ years of longevity, making it ideal for mission-critical embedded designs.
The kit runs on a fully integrated embedded Linux platform, built using the Yocto Project, providing flexibility and scalability to customize software to specific project requirements. Additionally, the Digi TrustFence® security framework is built-in, offering secure boot, encrypted storage, secure device identity, and software integrity monitoring — simplifying the development of highly secure IoT devices.
The CC-WMP133-KIT is further enhanced by Digi ConnectCore Cloud Services, which allow developers to manage devices, push firmware updates, and monitor fleet performance remotely. Digi’s expert support, along with ConnectCore Security Services, assists developers from prototyping through to deployment and maintenance.
Overall, the CC-WMP133-KIT is an ideal platform for accelerating development cycles, lowering risk, and reducing time-to-market for secure, connected industrial and medical embedded systems.
For Datasheet click Here.
Features
- Industrial-grade, scalable, embedded SOM platform
- Pre-certified dual-band Wi-Fi 5 (802.11ac) and Bluetooth 5.2
- Power management with hardware and software support
- Digi SMTplus form factor (29 x 29mm) for ultimate reliability
- High level of pin-compatibility with ConnectCore 6UL SOMs
- Built-in Digi TrustFence device security, identity and privacy
- Seamless cellular modem and Digi XBee» integration
- Remote monitoring, device management and IOT application
- Enablement with Digi ConnectCore Cloud Services, Digi Embedded Yocto Linux support
- Turnkey development services available from Digi WDS
Applications
- Medical/healthcare
- Transportation
- Smart cities
- HVAC
- Energy
- Renewable energy
Package Includes

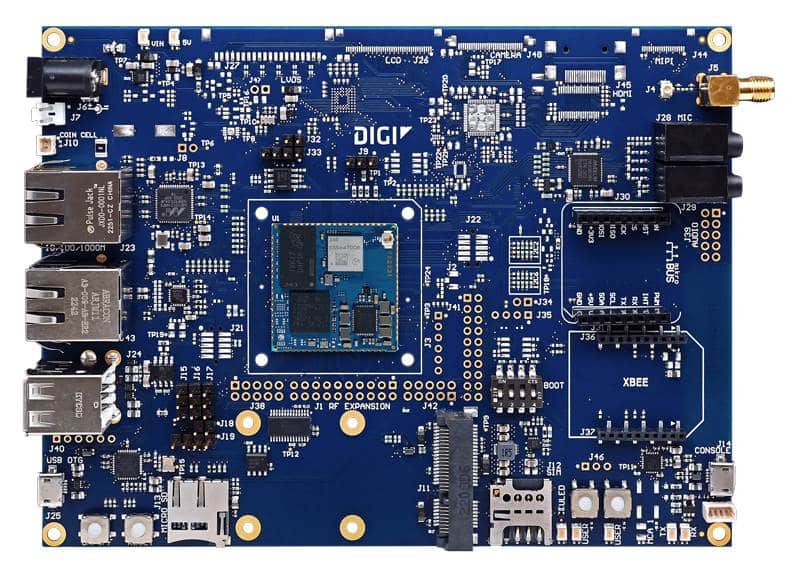

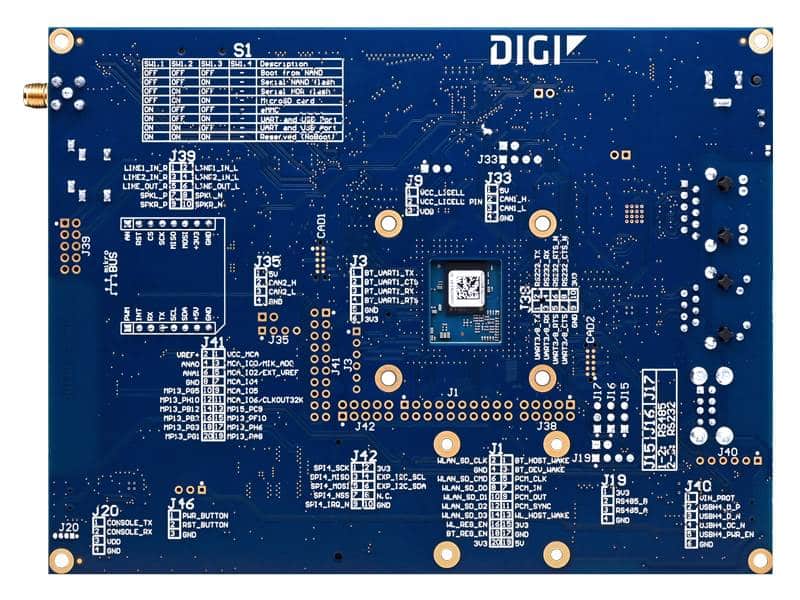

- Digi ConnectCore® MP133 development board with SOM
- Digi ConnectCore Cloud Services Premium 1-year license
- Console port cable
- Dual-band wireless antenna
- Power supply and accessories
- Reference designs and online documentation
