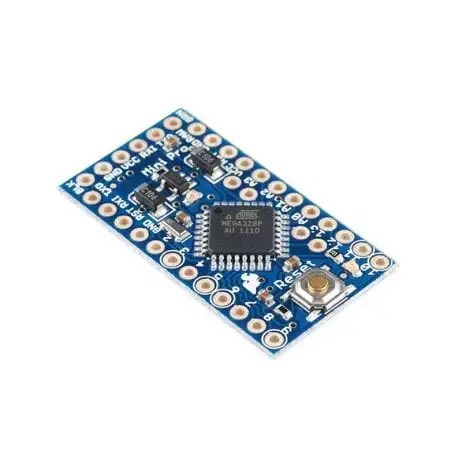

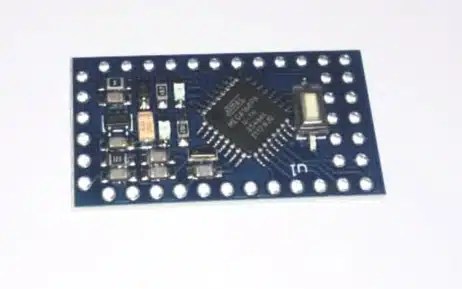

Pro Mini ATMEGA328P 5V/16M (Official Version)
Original price was: ₹390.00.₹202.54Current price is: ₹202.54. (Excl. 18% GST)
Price (Excl. GST): ₹202.54
Price (Incl. GST): ₹239.00
- Microcontroller: ATmega328
- Circuit Operating Voltage: 5V
- Clock frequency: 16MHz.
- Digital I/O Pins: 14
- 8 analog input port: A0 ~ A7.
- A pair of TTL level serial port transceiver : RX / TX.
- 6 PWM port: D3, D5, D6, D9, D10, D11.
- Support serial download.
| Weight | 3 g |
|---|---|
| Dimensions | 33 × 18 × 3.5 mm |
12 in stock
9 in stock
2 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
This is Pro Mini ATMEGA328P 5V/16M running the 16MHz bootloader. Pro Mini ATMEGA328P come without connectors.
This board is an excellent choice for quickly getting started. The Arduino Pro series is designed for users who are comfortable with its limitations, including a 5V system voltage, absence of connectors, and the need for an off-board USB connection.
The Pro Mini ATMEGA328P 5V/16M is a microcontroller board based on the ATmega328. It features 14 digital I/O pins (6 of which can serve as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and mounting holes for pin headers.
For USB power and communication, you can connect a six-pin header to an FTDI cable. The Pro Mini Arduino is intended for semi-permanent installations in projects or exhibitions, and its pin layout is compatible with the Mini Arduino.
Features:
- ATmega328 running at 16MHz with external resonator (0.5% tolerance)
- 0.8mm Thin PCB
- USB connection off board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over-current protected
- Weighs less than 2 grams!
- DC input 5V up to 12V
- Onboard Power and Status LEDs
- Analog Pins: 8
- Digital I/Os: 14
Package Includes :
1 x Pro Mini ATMEGA328P 5V/16M (Official Version)
