PL2303 PL2303HX USB To TTL(Serial) Converter Module (5 Pin)
Original price was: ₹99.60.₹62.00Current price is: ₹62.00. (Excl. 18% GST)
Price (Excl. GST): ₹62.00
Price (Incl. GST): ₹73.16
- 500mA self-recovery fuse for protection
- Two data transmission indicator can monitor data transfer status in real time
- Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power
- Electrostatic package ensures the board will not be damaged before use
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

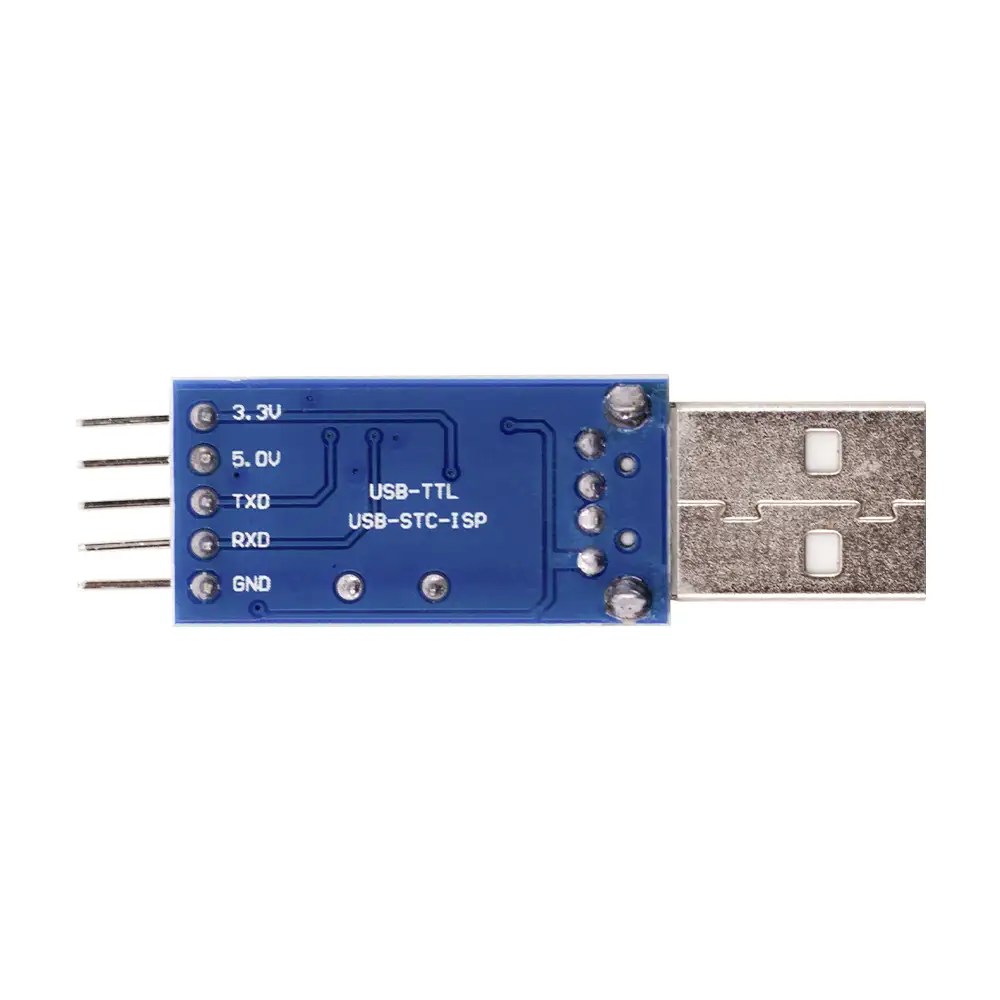

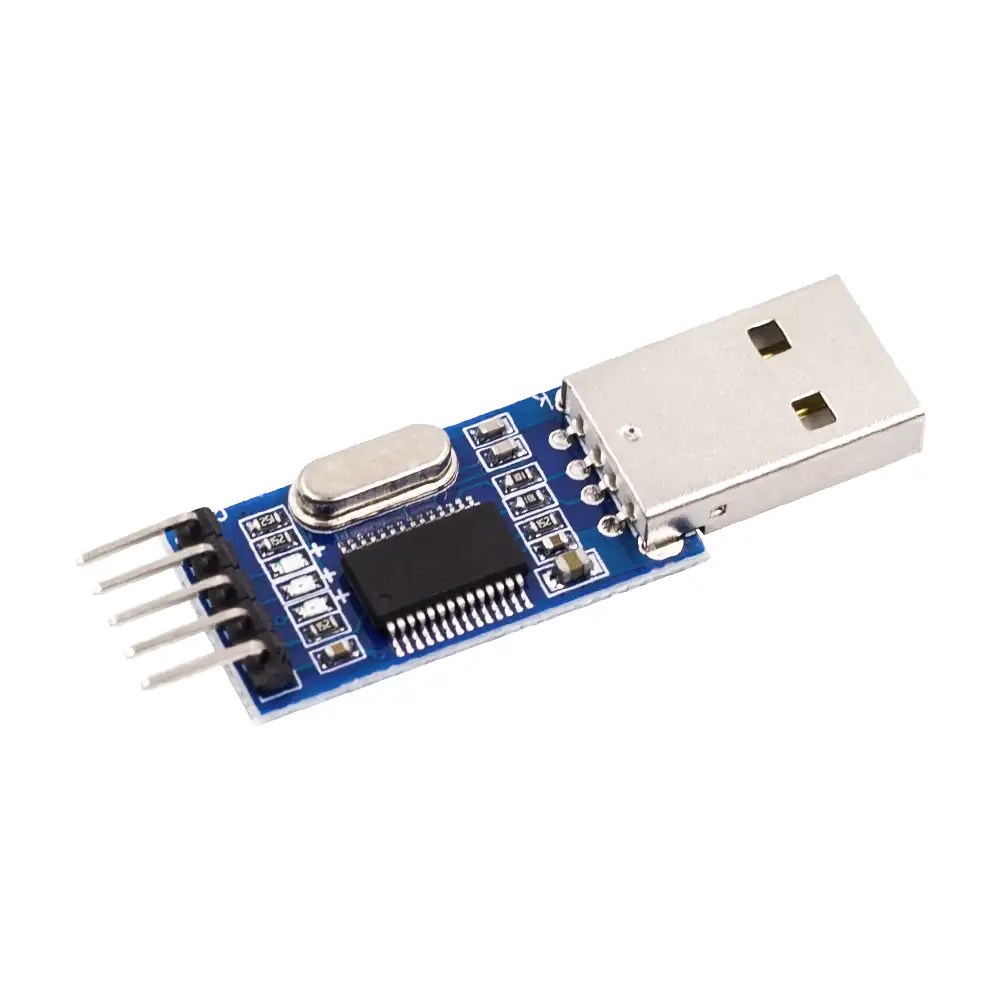

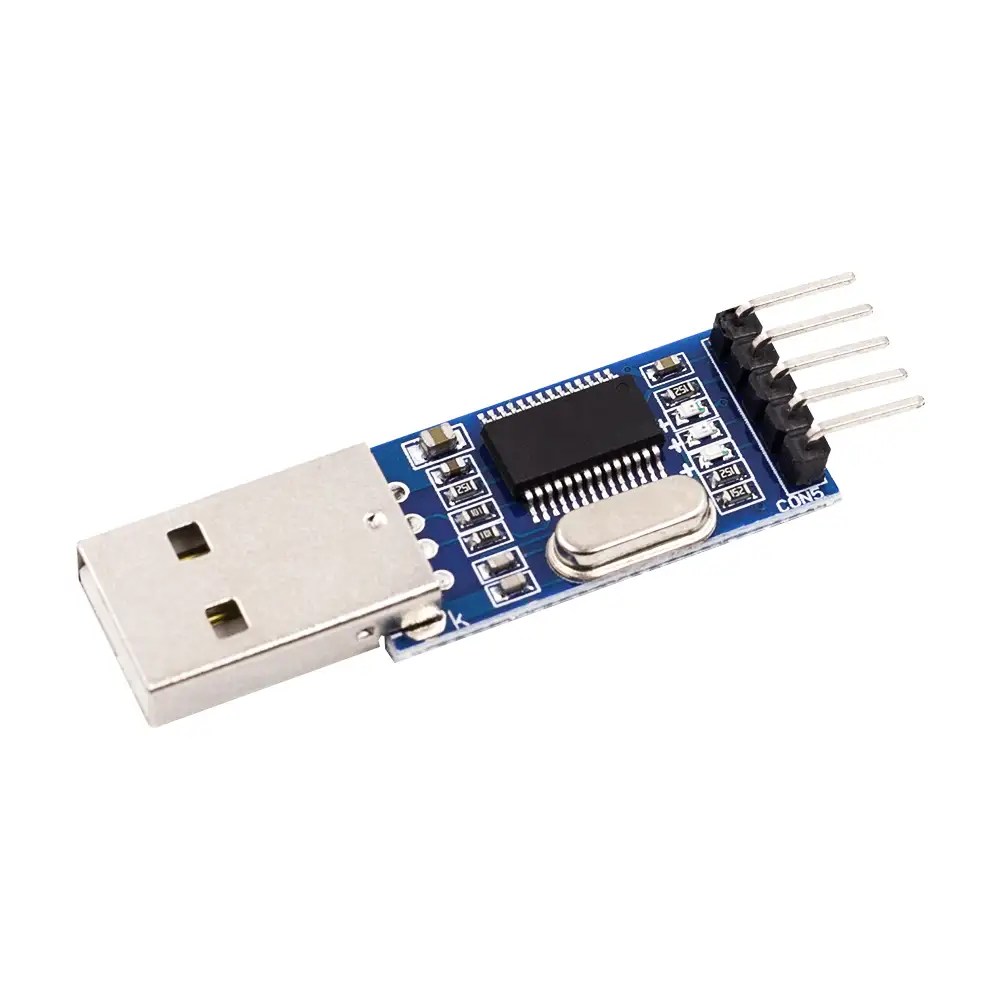

This is PL2303 PL2303HX USB To TTL(Serial) Converter Module (5 Pin). Adopt imported controller RS232 TTL, which can stabilize the flash with high-speed 500mA self-recovery fuse for protection.
Two data transmission indicator can monitor data transfer status in real-time. Reserve 3.3V and 5V pin interface, easy for DDWRT of different voltage system that needs power. The entire board is coated by a high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside, so that the board won’t be burnt down by a material shortcut.
For issues related to Prolific USB Windows 8.1 and Windows 10 driver, see the VIDEOS section.
Applications
- All kinds of satellite set-top box upgrade.
- Router, HDD, ADSL, broadband modem firmware upgrade or cracked upgrade.
- cellphone, XBOX360, GPS serial communication, vehicle inspection and test, DVD flash and so on.
- Burn writes STC MCU, NXP MCU, Renesas MCU, NEC MCU and so on.
- Simple UART communication commonly used UART debugging tools in the supper terminal.
- USB signal transferred to the TTL signal may be used by electronic enthusiasts.
Features
- Adopt imported controller PL2303HX, which can stabilize the flash with high speed
- 500mA self-recovery fuse for protection.
- Two data transmission indicator can monitor data transfer status in real time.
- Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power.
- The entire board is coated by the high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside.
- so that the board won’t be burnt down by material shortcut.
- The electrostatic package ensures the board will not be damaged before use.
- Support WIN7 system.
Package Includes
- 1 x PL2303 PL2303HX USB To TTL(Serial) Converter Module (5 Pin)
