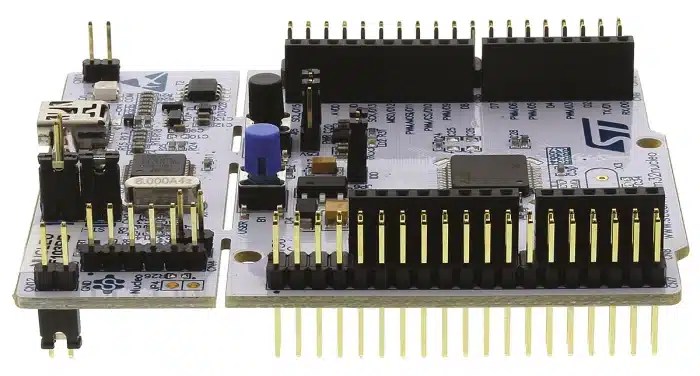

NUCLEO-L053R8 Development Board, STM32 Nucleo-64, STM32L053R8 MCU, Arduino Uno & ST Morpho Connectivity
Original price was: ₹3,800.00.₹2,999.00Current price is: ₹2,999.00. (Excl. 18% GST)
Price (Excl. GST): ₹2,999.00
Price (Incl. GST): ₹3,538.82
- Product: STMICROELECTRONICS NUCLEO-L053R8 Development Board
- STM32 microcontroller
- 1 user LED shared with ARDUINO®
- 1 user and 1 reset push-buttons
- 32.768KHz crystal oscillator
2 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
Description
The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.
The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
Features
- Common features
-
- STM32 microcontroller in an LQFP64 or LQFP48 package
- 1 user LED shared with ARDUINO®
- 1 user and 1 reset push-buttons
- 32.768 kHz crystal oscillator
- Board connectors:
- ARDUINO® Uno V3 expansion connector
- ST morpho extension pin headers for full access to all STM32 I/Os
- Flexible power-supply options: ST-LINK USB VBUS or external sources
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
- Features specific to some of the boards
- Second user LED: NUCLEO-C071RB
- External or internal SMPS to generate Vcore logic supply: NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
- 24 MHz or 48 MHz HSE: NUCLEO-C031C6, NUCLEO-C071RB, NUCLEO-G431RB, NUCLEO-G474RE, and NUCLEO-G491RE
- User USB Device full speed, or USB SNK/UFP full speed: NUCLEO-C071RB, NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
- Cryptography: NUCLEO-H533RE, NUCLEO-U083RC, and NUCLEO-U545RE-Q
- Board connectors:
- External SMPS experimentation dedicated connector: NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE-P, and NUCLEO-U545RE-Q
- USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK
- USB Type-C® user connector: NUCLEO-C071RB, NUCLEO-H503RB, NUCLEO-H533RE, and NUCLEO-U545RE-Q
- MIPI® debug connector: NUCLEO-C071RB, NUCLEO-G431RB, NUCLEO-G474RE, NUCLEO-G491RE, NUCLEO-H503RB, NUCLEO-H533RE, NUCLEO-U031R8, and NUCLEO-U083RC
- On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
Documents
Package Includes
- 1 x NUCLEO-L053R8 Development Board, STM32 Nucleo-64, STM32L053R8 MCU, Arduino Uno & ST Morpho Connectivity
* Product Images are shown for illustrative purposes only and may differ from the actual product.
