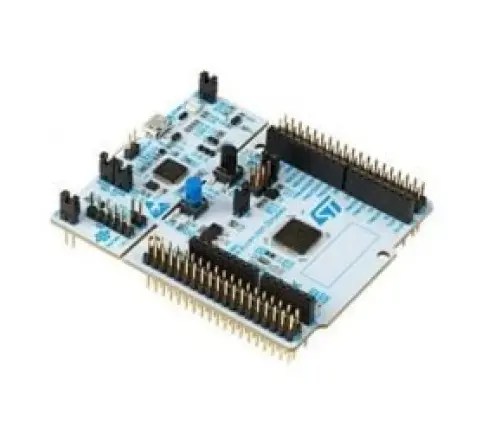

NUCLEO-G070RB Development Board, STM32 Nucleo-64, STM32G070RB MCU, Arduino Uno & ST-Link Debugger
Original price was: ₹3,300.00.₹2,041.53Current price is: ₹2,041.53. (Excl. 18% GST)
Price (Excl. GST): ₹2,041.53
Price (Incl. GST): ₹2,409.01
- STM32 microcontroller in LQFP64 package
- External SMPS to generate Vcore logic supply (only available on ‘-P’ suffixed boards)
- 1 user LED shared with Arduino™
- 1 user and 1 reset push-buttons
3 in stock
48 in stock
5 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
NUCLEO-G070RB Development Board Description
STM32 Nucleo-64 development board with STM32G070RB MCU supports Arduino and ST morpho connectivity. The NUCLEO-G070RB Development Board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode.
Key Features
- STM32 microcontroller in LQFP64 package
- External SMPS to generate Vcore logic supply (only available on ‘-P’ suffixed boards)
- 1 user LED shared with Arduino™
- 1 user and 1 reset push-buttons
Technical Specification
| MCU Architecture | ARM |
| MCU Sub-Architecture | Cortex-M0+ |
| Microcontroller | STM32G070RBT6 |
| Kit | Nucleo-64 Dev Board STM32G070RBT6 |
| Microcontroller Family | STM32G0 |
| No of Bits | 32bit |
| Shipping Weight | 0.067 kg |
| Shipping Dimensions | 19 × 15 × 3 cm |
Documents
Package Included
- 1 x NUCLEO-G070RB Development Board, STM32 Nucleo-64, STM32G070RB MCU, Arduino Uno & ST-Link Debugger
