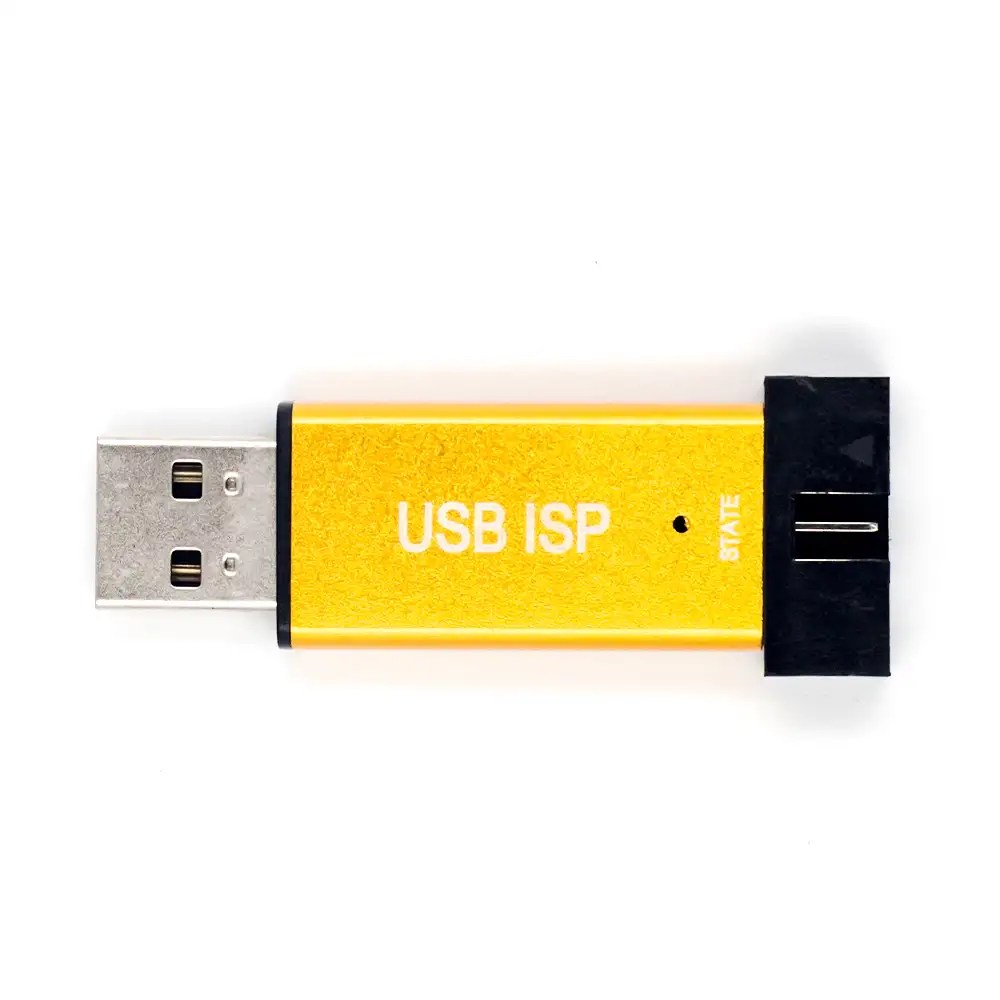

Mini USBISP USBASP Programmer Aluminum for 51 single chip AVR (Random Colour)
Original price was: ₹658.00.₹399.00Current price is: ₹399.00. (Excl. 18% GST)
Price (Excl. GST): ₹399.00
Price (Incl. GST): ₹470.82
- USBASP Board
- Mini size, with cover
- Support USB 1.0 or 2.0 interface
- Support S51 and the AVR chip programmer. fast and stable
- Standard IDC 10PIN interface
- Support software: AVR_FIGHTER, Progisp1.72
2 in stock
27 in stock
1 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
This Mini USBISP USBASP Programmer is based on Thomas Fischl’s USB ASP design and connects to your computer’s USB port. This consists of an ATMega88 or an ATMega8 and a couple of passive components to achieve a USB interface and the rest is done in firmware. It is designed with a 500mA over-current protection self-recovery fuse.
Features
- No need to install the driver. Plugged into a computer USB port, will be prompted to find the engineering input device
- The perfect support is WINXP, VISTA, and WIN732 64-bit operating systems.
- Using a USB port power supply, 500mA recoverable fuse, and short circuit overcurrent protection, the target board can simultaneously power with USB.
- Support S51 and AVR chips burn faster than parallel ISP faster, more stable; there is no parallel port, and the best choice for notebook computers.
- Using the latest version of the ultra-stable firmware, no hardware jumper selectable low-speed download, download faster and more stable.
- Using standard IDC10 interface.
Specifications
- Material: Silicone
- Compatible Chips: ATMega Series, Tiny Series, Classic Series, CAN Series, PWM Series
Interface definition
AT89S51 and S52 series pin connection lines correspond to the definition of downloads:
- MOSI -> P1.5
- MISO -> P1.6
- SCK -> P1.7
- RES -> RST
- GND -> GND
- 5V -> VCC
Package Includes

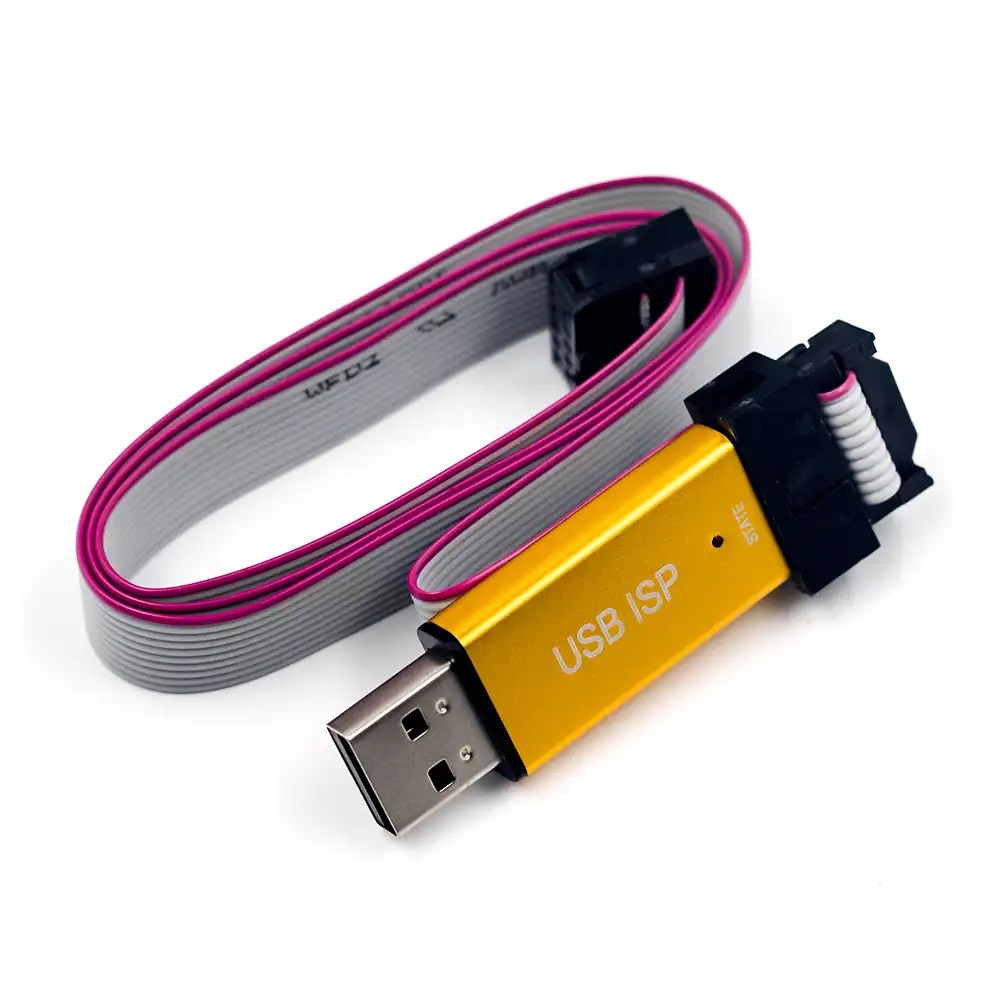

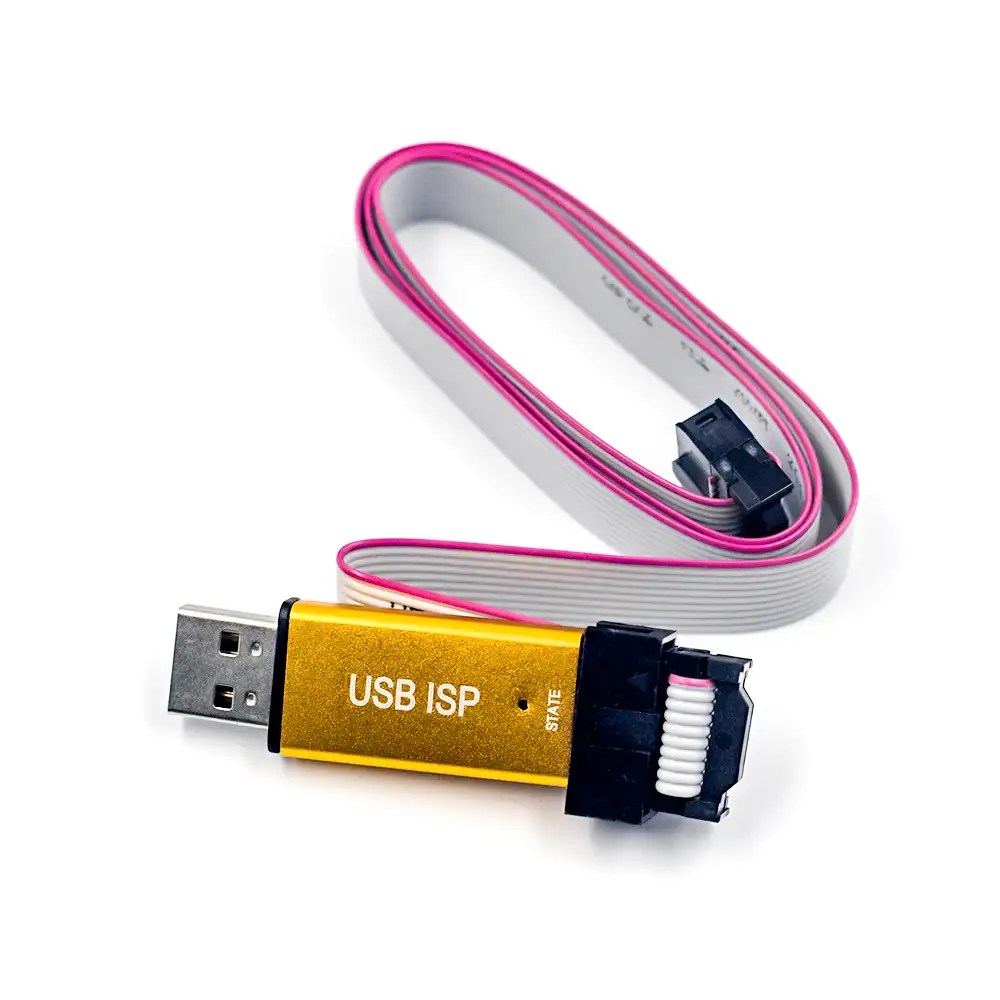

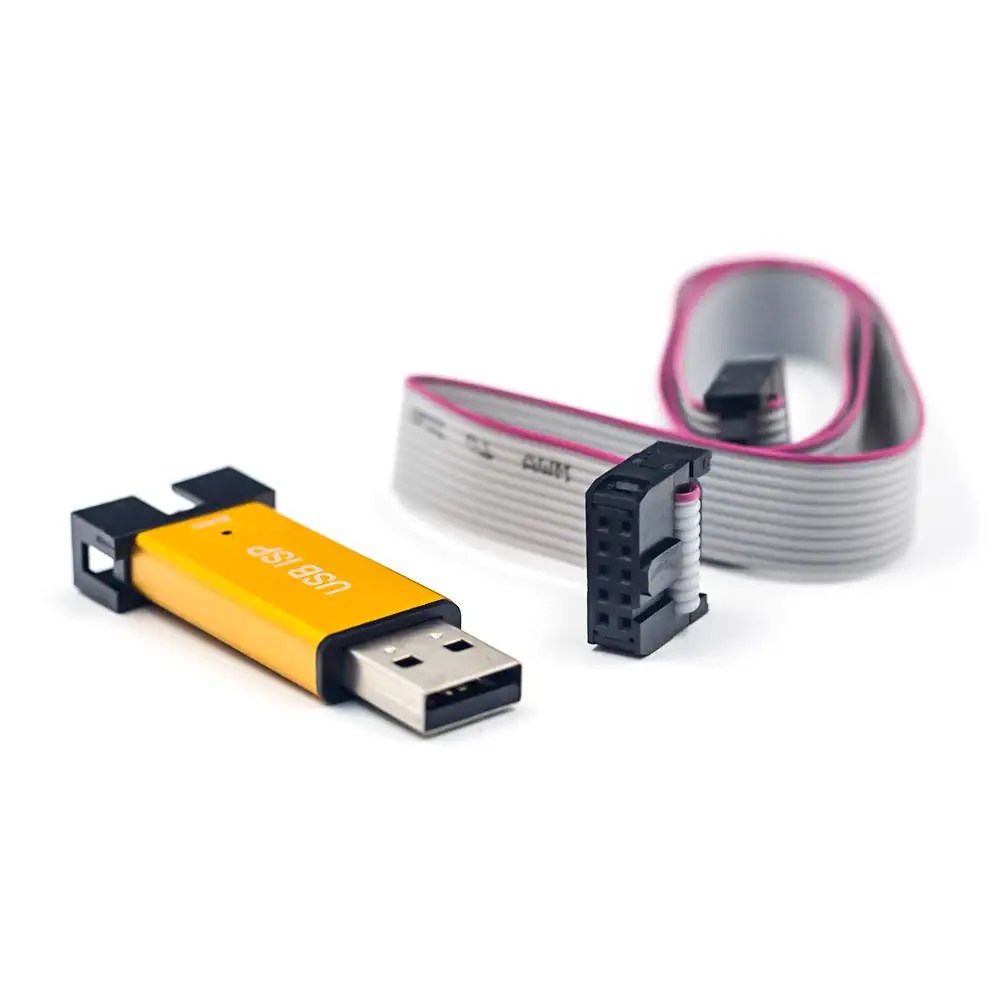

- 1 x Mini USBISP USBASP Programmer (AVR USB ISP USBISP USBASP ASP Programmer for ATMEL with Aluminum Shell and cable)
