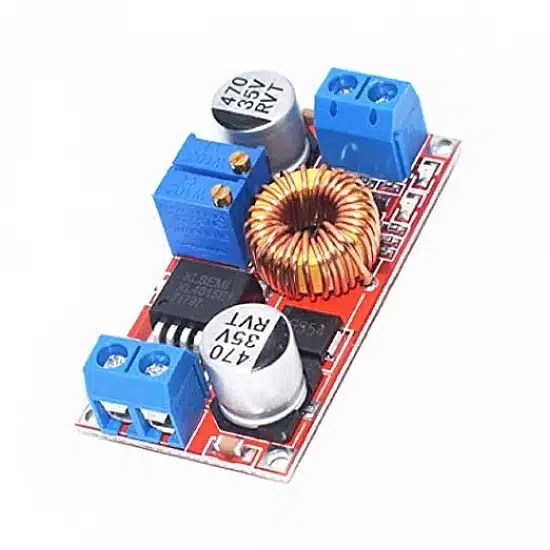

XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module
Original price was: ₹199.00.₹99.00Current price is: ₹99.00. (Excl. 18% GST)
Price (Excl. GST): ₹99.00
Price (Incl. GST): ₹116.82
-
High-efficiency DC-DC buck (step-down) power supply based on XL4015 chip
-
Supports 0–5A adjustable output current with constant current (CC) and constant voltage (CV) modes
-
Operates at 300 KHz fixed frequency PWM for stable performance
-
Low ripple (<50mV) ensures clean and reliable output
-
Can be used as a lithium battery charger (Li-ion, LiPo) with CC/CV charging function
-
Suitable as an LED driver, step-down regulator, or battery charging module
-
Adjustable output voltage & current for flexible applications
13 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The XL4015 5A Constant Current / Voltage (CC/CV) LED Driver and Lithium Battery Charging Module is a high-performance DC-DC buck (step-down) power supply module designed for efficiency, reliability, and versatility. Built around a premium PWM control chip, this module operates at a fixed 300 KHz switching frequency, ensuring high conversion efficiency, stable operation, and minimal ripple—typically less than 50mV.
This module supports 0–5A adjustable output current and provides precise voltage regulation, making it suitable for a wide range of power management applications. One of its key features is the CC/CV functionality, which allows it to work both as a step-down power module and as a dedicated charger for lithium batteries (Li-ion, LiPo). The constant current mode prevents overcurrent damage, while the constant voltage mode ensures safe and stable charging, making it an excellent choice for battery-powered projects.
The XL4015 buck converter can step down higher voltages, such as 24V or 36V, to lower levels like 12V, 5V, or 3.3V with excellent line and load regulation. This makes it ideal for DIY regulated power supplies, battery charging circuits, telecom and networking equipment, portable instruments, LCD monitors, vehicle power systems, and industrial equipment.
Its adjustable voltage and current output further enhance its flexibility, allowing users to fine-tune the module for different requirements. Whether you need a reliable lithium battery charging solution, an efficient LED driver, or a general-purpose DC-DC buck converter, the XL4015 module is a compact and cost-effective solution.
Features
- CC CV Adjustable
- Low ripple
- When the module charges a battery, it first use constant current to protect the battery.
- Built in current limit function
- Built in output short protection function
Specifications
- Input Voltage (V): 5V-32V
- Output Voltage(V): 0.8V-30V
- Output Current(A): adjustable maximum 5A
- Output Power(Watt): 75
- Voltage Regulation: +/- 2.5%
- Load Regulation: +/- 0.5%
- Switching frequency: 300 KHz
- Conversion Efficiency: 95% (the highest)
- Length (mm): 51
- Width (mm): 26.3
- Height (mm): 14
- Weight (gm): 18
Package Includes
- 1 x XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module
