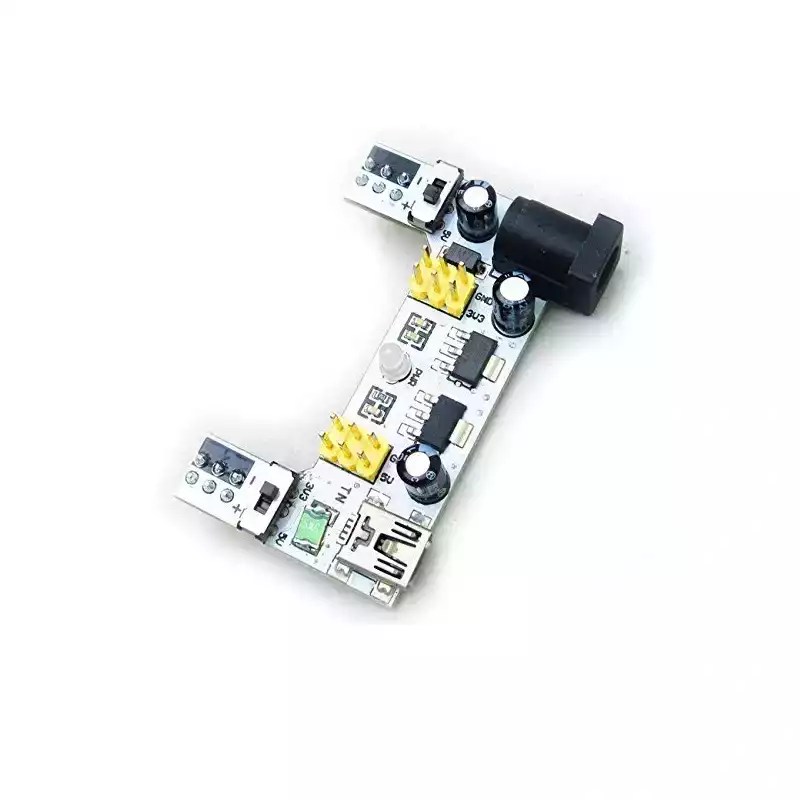

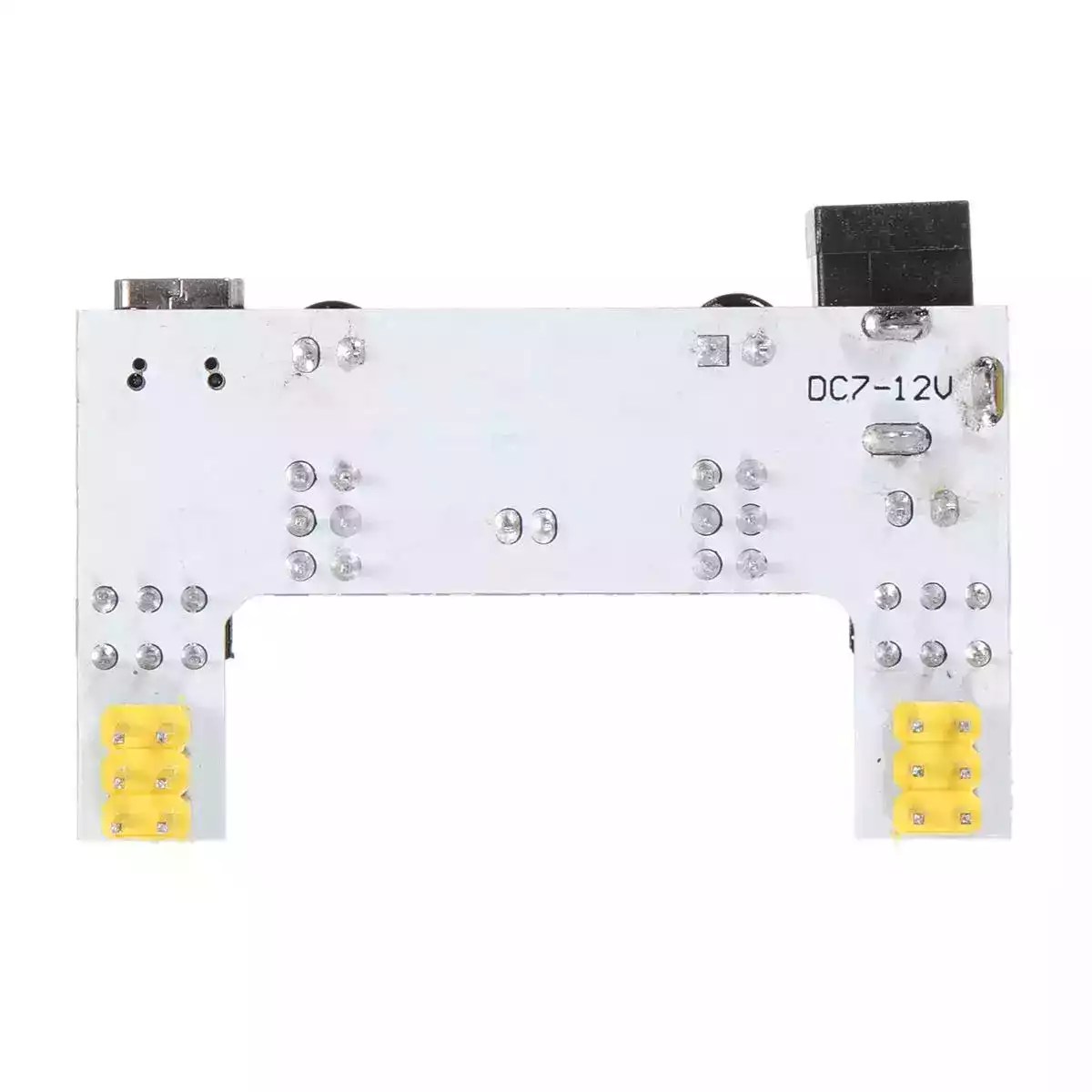

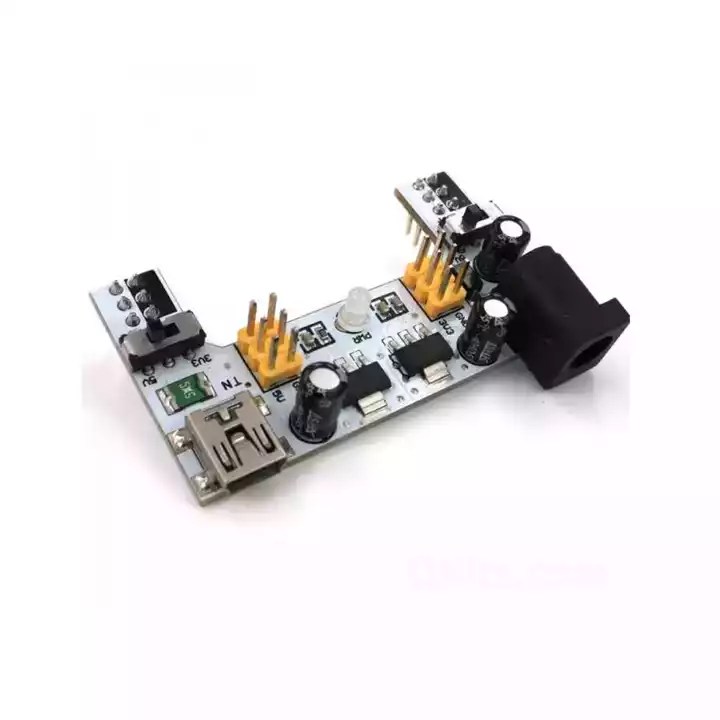

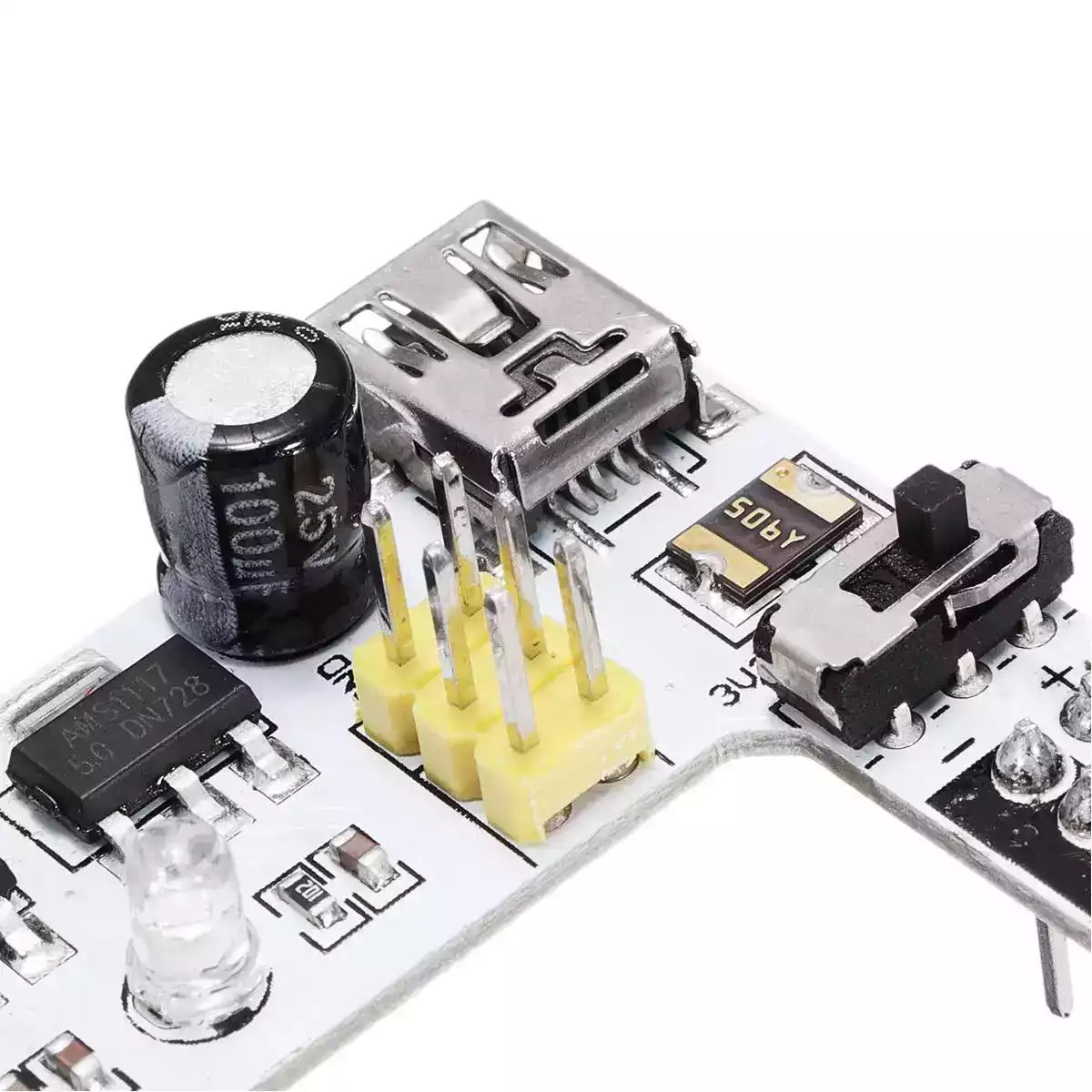

XD-42 Bread Board Power Supply Module 5V 3.3V
Original price was: ₹209.00.₹88.00Current price is: ₹88.00. (Excl. 18% GST)
Price (Excl. GST): ₹88.00
Price (Incl. GST): ₹103.84
- Locking On/Off Switch
- Green LED Power Indicator
- Voltage Swapping Switch on both rail Channel
- Its concave design will not waste your proto zone.
- Easy to install on a breadboard with Compact portable size
| Weight | 11 g |
|---|---|
| Dimensions | 53 × 36 × 13 mm |
15 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module is a compact and portable solution that simplifies powering your projects, eliminating the need for bulky power supplies. This module features a built-in series diode and polarity reversal protection for reliable operation. It accepts a DC input of 7V to 12V through a DC jack (black) and provides separate 3.3V and 5V outputs on each channel.
Equipped with a Mini USB port for power input, the module also includes an indicator LED to display power status and a voltage switching button to toggle between 3.3V and 5V on both channels. Its design ensures that it does not waste space on your breadboard’s prototyping area. Supporting both Mini USB and 7-12V power jack inputs, the module offers two independent power options with on/off switches for each channel. This makes it an essential addition to any DIY kit for electronics experimentation and prototyping.
Features:
- Locking On/Off Switch
- Green LED Power Indicator
- Voltage Swapping Switch on both rail Channel
- Its concave design will not waste your proto zone.
- Easy to install on a breadboard with Compact portable size
Package Includes:
1 x XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module
