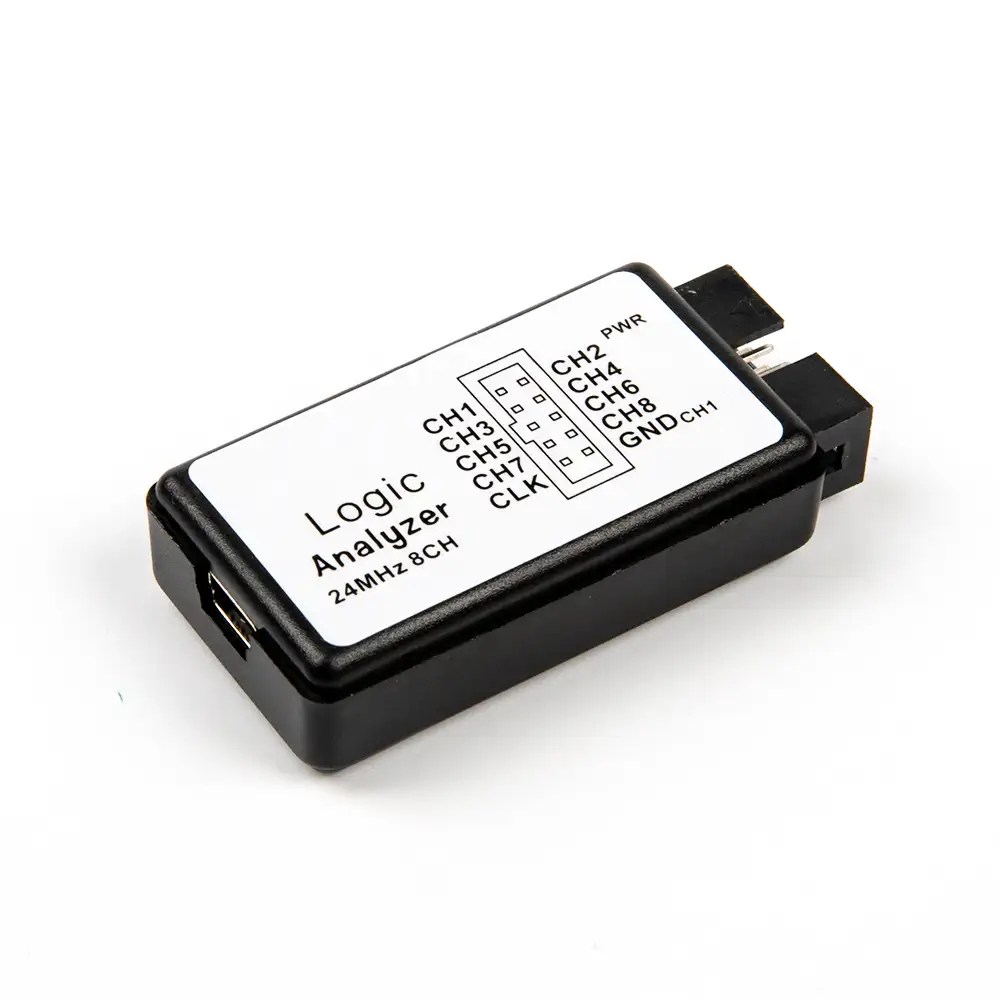

USB Logic Analyzer 24M8CH for Debugging
Original price was: ₹950.00.₹480.00Current price is: ₹480.00. (Excl. 18% GST)
Price (Excl. GST): ₹480.00
Price (Incl. GST): ₹566.40
- Logical light indication: a small light indicates CHO electrical level.
- 8-Channels USB logic analyzer with a 24Mhz sampling frequency
- The Sampling Rate can be selected from 25KHz to 24MHz.
- Voltage: 0-5.5V, Threshold Voltage: 1.5V
- USB power supply
- Protocol analysis (I2C, SPI, UART, 1-wire, CAN, LIN etc.)
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
Description
Our hugely popular low-cost 8-channel analyser is designed to work with the Sigrok open-source signal analysis software suite giving this analyser a feature list normally found on analysers costing significantly more. When used with the Sigrok PulseView software you can capture and decode up to 8 digital channels at a maximum sample rate of 24MHz*. The software includes built-in decoders for many types of protocols including CAN, I2C, JTAG, SPI, UART and so on.
Note: This logic analyzer is not from Saleae, but is compatible with their software.

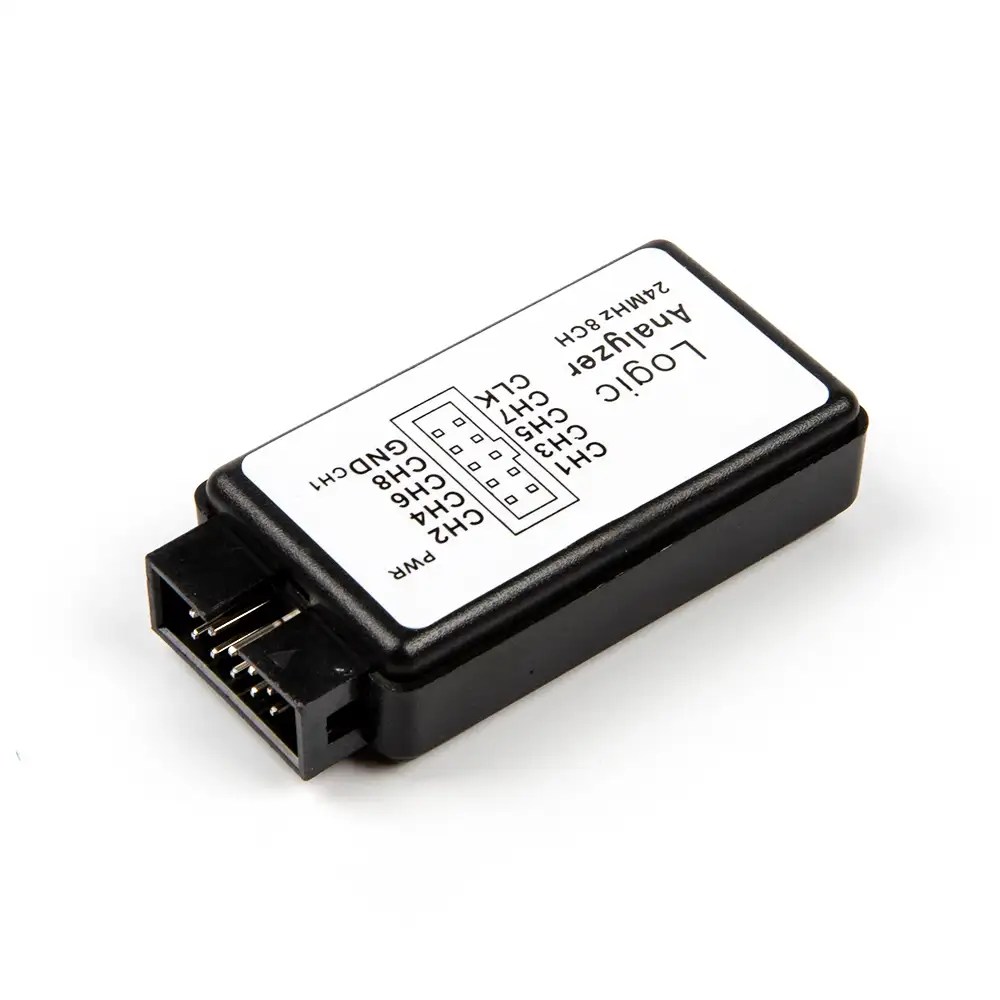

There are a total of 8 digital channels, and the voltage range is 0V and 5.5V, where 1.5V is the voltage threshold, below 1.5V is considered low, and above 1.5V is considered high.
USB Logic Analyzer – Specifications
| Supply Voltage | 0-5.5V |
| High-Level Threshold | 1.5V |
| Low-Level Threshold | 0-0.8V |
| Dupont Cable Length | 20cm |
| No. of wires | 10 |
| Protocol Support | I2C, SPI, UART, CAN, LIN, 1-wire, etc. |
| Product Dimensions | 54 x 27 x 15mm |
| Operating range | -30°C to +75°C |
| Product Weight | 60 grams |
Sampling rates can be set as follows.
- 24MHz*,
- 16MHz*,
- 12MHz*,
- 8MHz*,
- 6MHz*,
- 4MHz*,
- 2MHz,
- 1MHz,
- 500KHz,
- 250KHz,
- 200KHz,
- 100KHz,
- 50KHz,
- 25KHz,
- 20KHz
Applications
- Debugging digital circuits
- Analysis of embedded systems
- Protocol analysis
- Reverse engineering
Package Includes

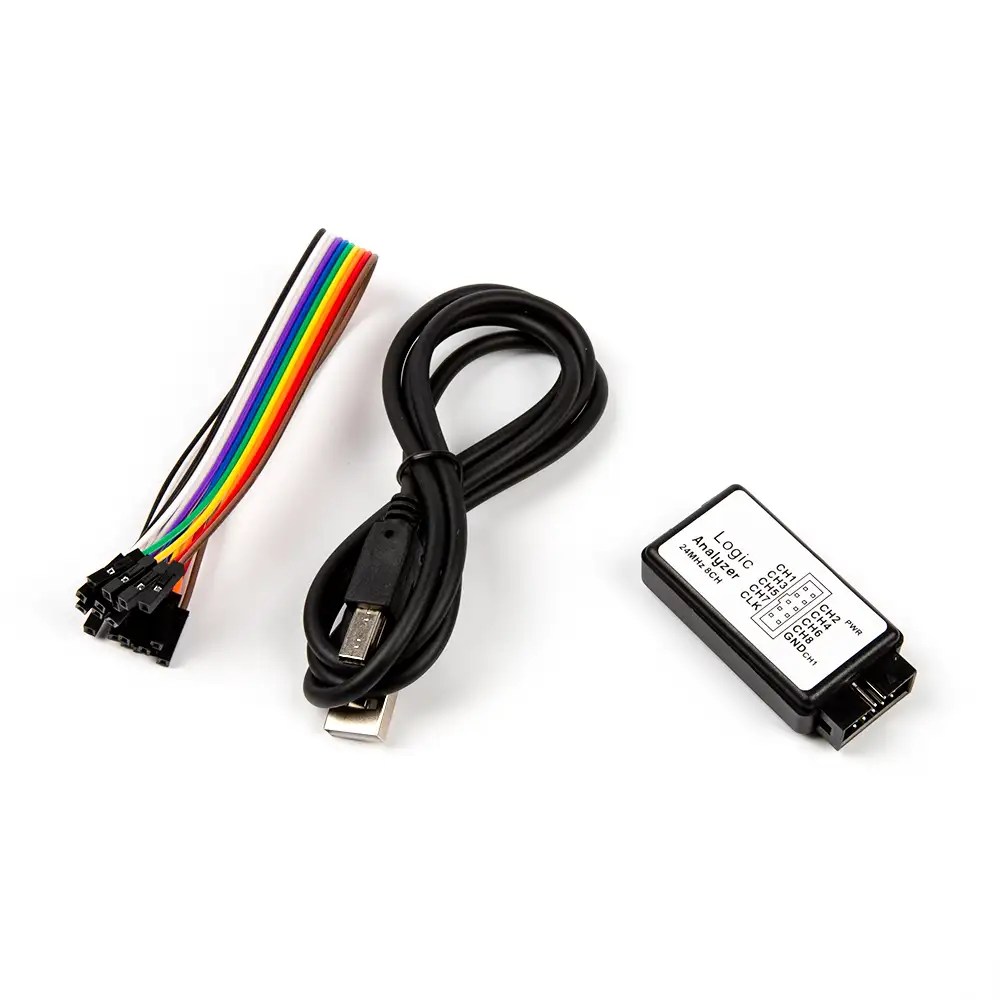

- 1 x USB Logic Analyzer
- 1 x USB Connecting Cable
- 10 x Dupont cable 20cm
