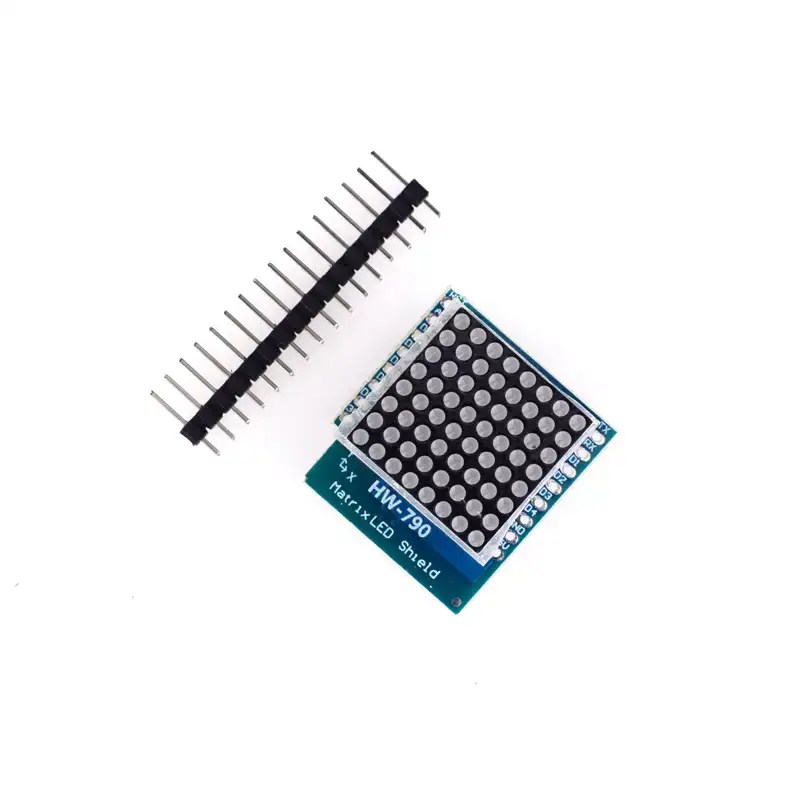

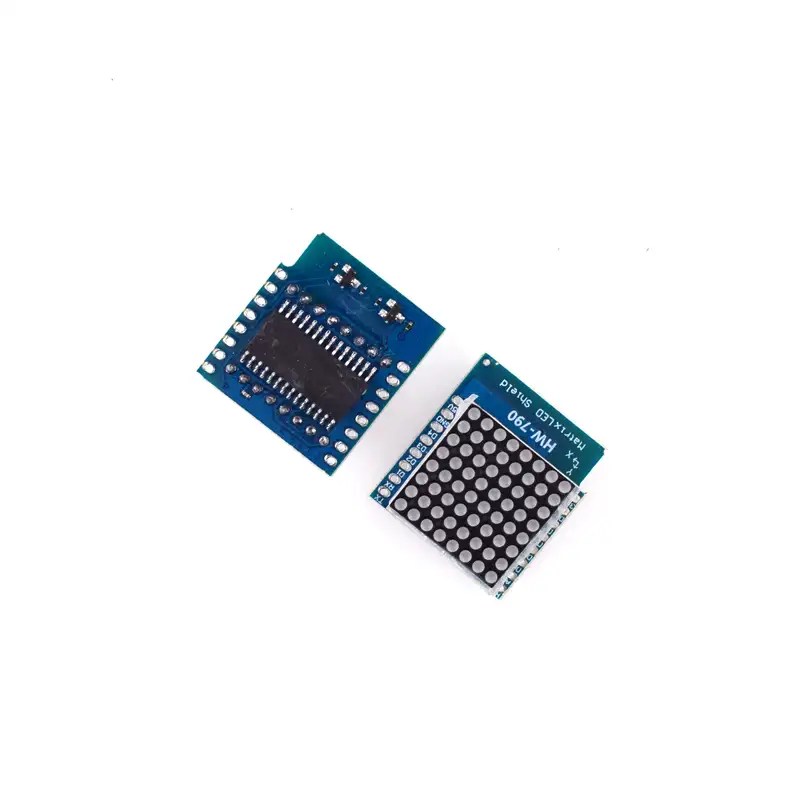

Matrix LED Shield V1.0.0 for WEMOS D1 Mini 8×8 Matrix Lattice Red LED Module
Original price was: ₹326.00.₹205.00Current price is: ₹205.00. (Excl. 18% GST)
Price (Excl. GST): ₹205.00
Price (Incl. GST): ₹241.90
- 8×8 lattice red LED module
- The module requires a 3.3V and 5V power supply (3.3V and 5V need to be powered at the same time)
- LED dot matrix glows red
- 8 step adjustable intensity
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

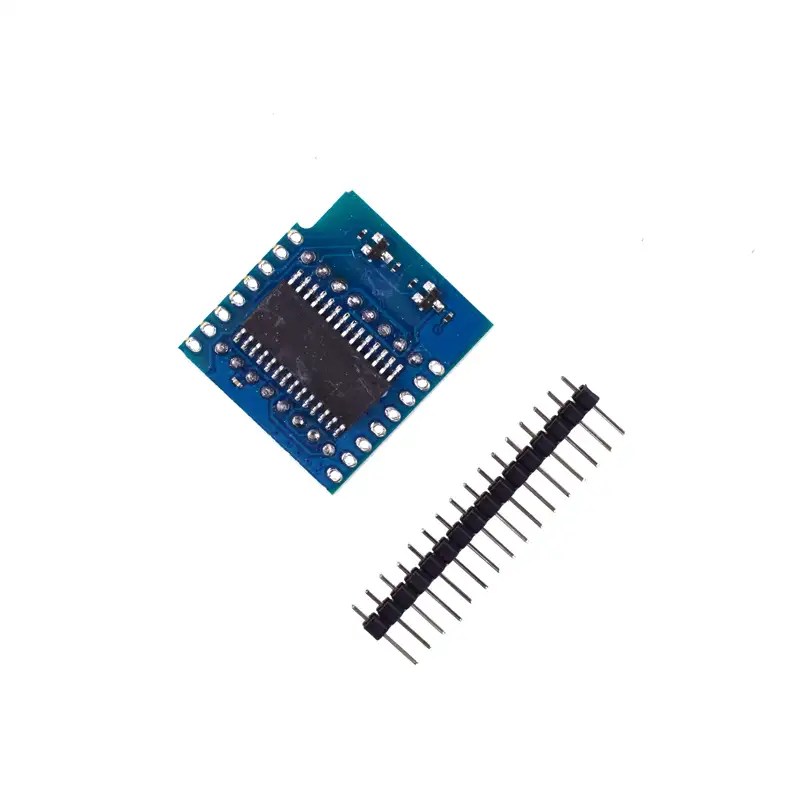

This module uses TM1640 LED (light-emitting diode display) drive control chip, which integrates MCU digital interface, data latch, LED driver and other circuits. The module can be controlled by 51, Arduino and other single-chip microcomputers to display the required patterns, numbers, etc.
Features
- Seamless Compatibility: Specifically designed for use with the WEMOS D1 Mini, ensuring easy integration and compatibility.
- Vibrant Display: Features an 8×8 lattice red LED module, providing a vibrant and eye-catching display for your projects.
- Versatile Functionality: Enables the creation of various displays, images, scrolling text, and more, allowing for endless creative possibilities.
- Easy Setup: Comes with an Arduino library for effortless setup and usage, simplifying the programming process.
- Header Pins: Includes header pins for convenient connection to the WEMOS D1 Mini, offering flexibility for different project configurations.
- TM1640 LED Driver IC: Utilizes the Titan Micro TM1640 LED driver IC for reliable performance and smooth operation.
- Compact Design: Compact size makes it suitable for projects with space constraints while maintaining functionality.
- Shield Version: Version 1.0.0 ensures compatibility with the specified WEMOS D1 Mini and LED module configuration.
Matrix LED Shield V1.0.0 – Product parameters
- 8×8 lattice red LED module
- The module requires a 3.3V and 5V power supply (3.3V and 5V need to be powered at the same time)
- LED dot matrix glows red
Note: When in use, the module needs to be powered by 3.3V and 5V at the same time.
Package Include
1 x Matrix LED Shield V1.0.0 for WEMOS D1 Mini 8×8 Matrix Lattice Red LED Module
